Wichard Marine

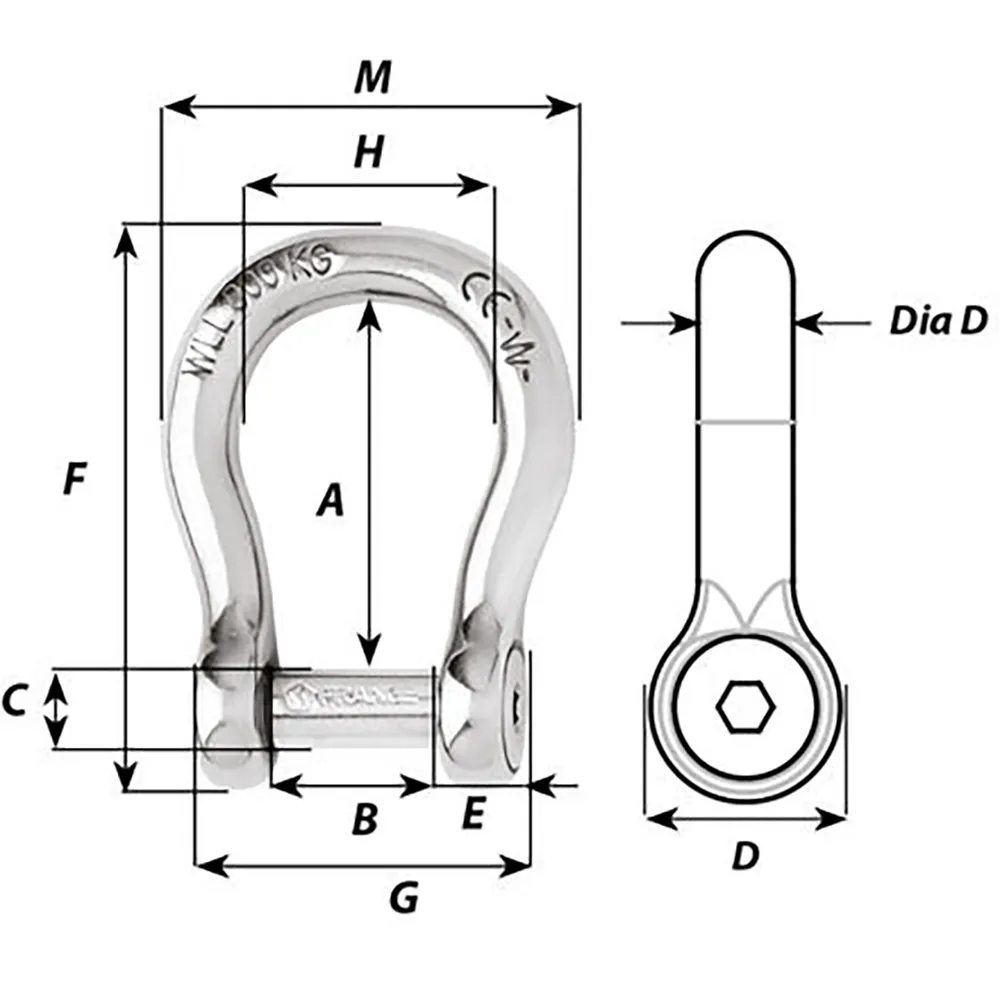

Wichard Self-Locking Allen Head Pin Bow Shackle - 12mm Diameter - 15/32

<p><strong>Self-Locking Allen Head Pin Bow Shackle - 12mm Diameter - 15/32"</strong></p><p><strong>Features:</strong></p><ul><li>Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel</li><li>The pin is locked into one of the indentations</li><li>The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging</li><li>No risks of loosening due to vibrations</li><li>Outstanding working and breaking loads</li><li>WLL: only for industrial applications (lifting i.e&hellip;)</li><li>CE marking</li></ul><p><strong>Applications:</strong></p><ul><li>Ideal to link chains and anchor</li><li>On the halyard, avoids damaging the sails</li><li>To be used when the clutter is reduced</li><li>To be used when ample room is required</li></ul><p><strong>Specifications:</strong></p><ul><li>Materials: 316 stainless steel grade</li><li>Working load: (lb) 4580 / (kg) 2080&nbsp;</li><li>WLL: (lb) 2640 / (kg) 1200&nbsp;</li><li>Breaking load: (lb) 13220 / (kg) 6000&nbsp;</li><li>Weight: (lb) 0.489 / (g) 222&nbsp;</li></ul><p style="box-sizing: border-box; margin: 10px 0px; padding: 0px; border: 0px; font: inherit; vertical-align: baseline; float: left; clear: both; text-align: left; width: 691px;"><strong style="box-sizing: border-box; margin: 0px; padding: 0px; border: 0px; font-style: inherit; font-variant: inherit; font-weight: 700; font-stretch: inherit; font-size: inherit; line-height: inherit; font-family: inherit; vertical-align: baseline;">Dimensions:</strong></p><ul style="box-sizing: border-box; margin: 0px; padding: 0px; border: 0px; font: inherit; vertical-align: baseline; list-style: inside disc;"><li>A: (inch) 2 11/64" / (mm) 55&nbsp;</li><li>B: (inch) 1 1/16" / (mm) 27&nbsp;</li><li>C: (inch) 15/32" / (mm) 12&nbsp;</li><li>D: (inch)15/16" / (mm) 24&nbsp;</li><li>D diameter: (inch) 15/32" / (mm) 12&nbsp;</li><li>E: (inch) 25/64" / (mm) 10&nbsp;</li><li>F: (inch) 1 1/2" / (mm) 38&nbsp;</li><li>M: (inch) 2 31/64" / (mm) 63&nbsp;</li></ul><p><strong>Caption:</strong></p><ul><li>Working Load (WL): For nautical applications</li><li>Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.<br>WLL = Breaking load / 5</li></ul><p>*Sold as an Individual</p> <!--- cis2:m2hqmpZo --->
1
Seller
3
In Stock
$114.72
From

Watch This Product
Available From 1 Seller
Seller Condition Qty Price Location Updated Action
Aztek Computers
VAR
Refurbished 3 $114.72 Frisco, TX Mar 18
