1343W

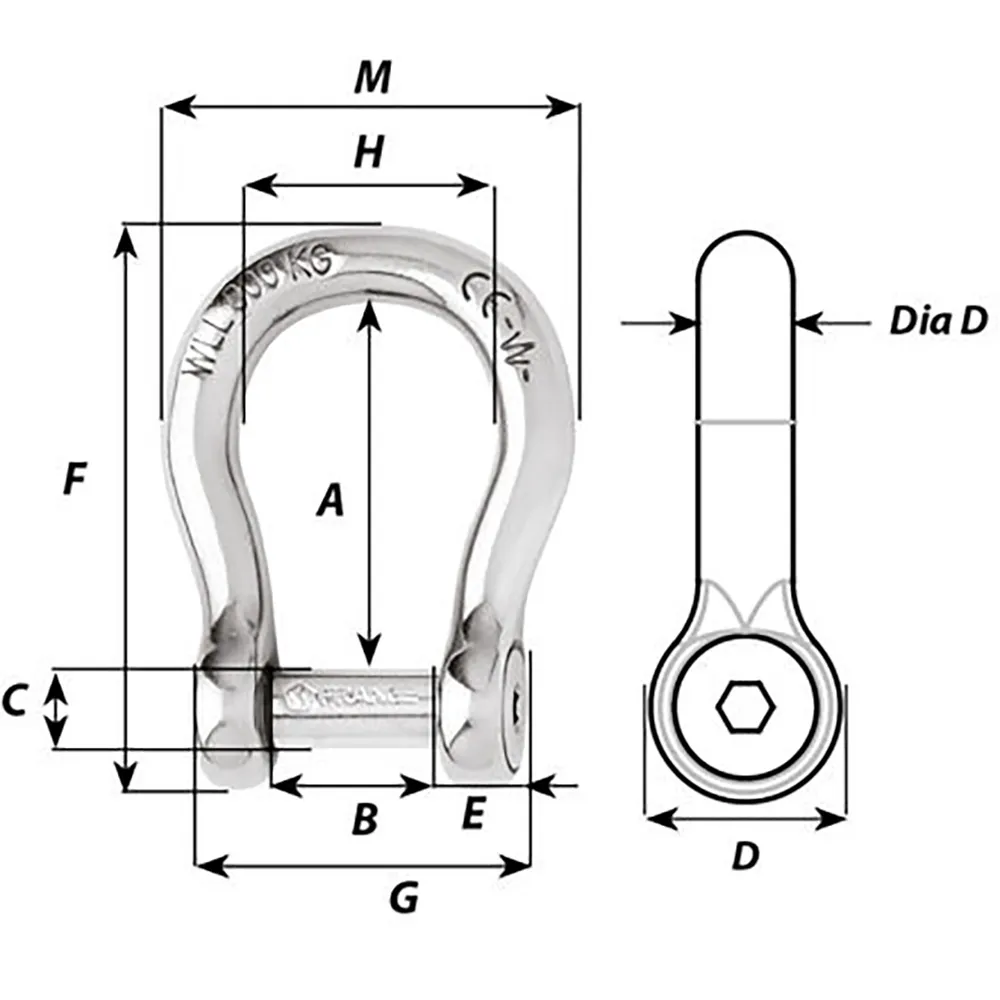

<p><strong>Self-Locking Allen Head Pin Bow Shackle - 6mm Diameter - 1/4"</strong></p><p><strong>Features:</strong></p><ul><li>Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel</li><li>The pin is locked into one of the indentations</li><li>The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging</li><li>No risks of loosening due to vibrations</li><li>Outstanding working and breaking loads</li><li>WLL: only for industrial applications (lifting i.e&hellip;)</li></ul><p><strong>Applications:</strong></p><ul><li>Ideal to link chains and anchor</li><li>On the halyard, avoids damaging the sails</li><li>To be used when the clutter is reduced</li><li>To be used when ample room is required</li></ul><p><strong>Specifications:</strong></p><ul><li>Materials: 316 stainless steel grade</li><li>Working load: (lb) 1320 / (kg) 600&nbsp;</li><li>WLL: (lb) 660 / (kg) 300&nbsp;</li><li>Breaking load: (lb) 3300 / (kg) 1500&nbsp;</li><li>Weight: (lb) 0.064 / (g) 29&nbsp;</li></ul><p><strong>Dimensions:</strong></p><ul><li>A: (inch) 1 1/16" / (mm) 27&nbsp;</li><li>B: (inch) 15/32" / (mm) 12&nbsp;</li><li>C: (inch) 15/64" / (mm) 6&nbsp;</li><li>D: (inch) 15/32" / (mm) 12&nbsp;</li><li>D diameter: (inch) 15/64" / (mm) 6&nbsp;</li><li>E: (inch) 13/64" / (mm) 5&nbsp;</li><li>F: (inch) 3/64" / (mm) 1&nbsp;</li><li>M: (inch) 1 17/64" / (mm) 32&nbsp;</li></ul><p><strong>Caption:</strong></p><ul><li>Working Load (WL): For nautical applications</li><li>Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.<br>WLL = Breaking load / 5</li></ul><p>*Sold as an Individual</p> <!--- cis2:m2hqmpZo --->
