F63646

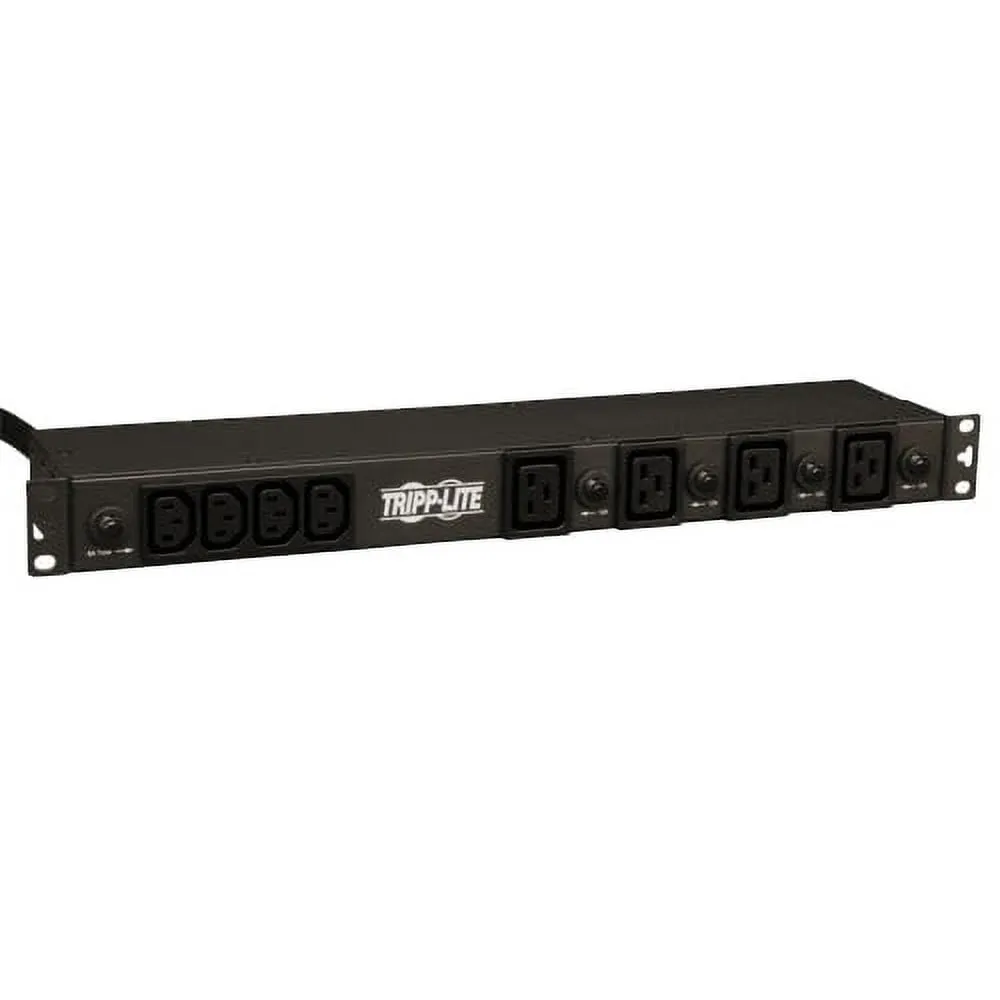

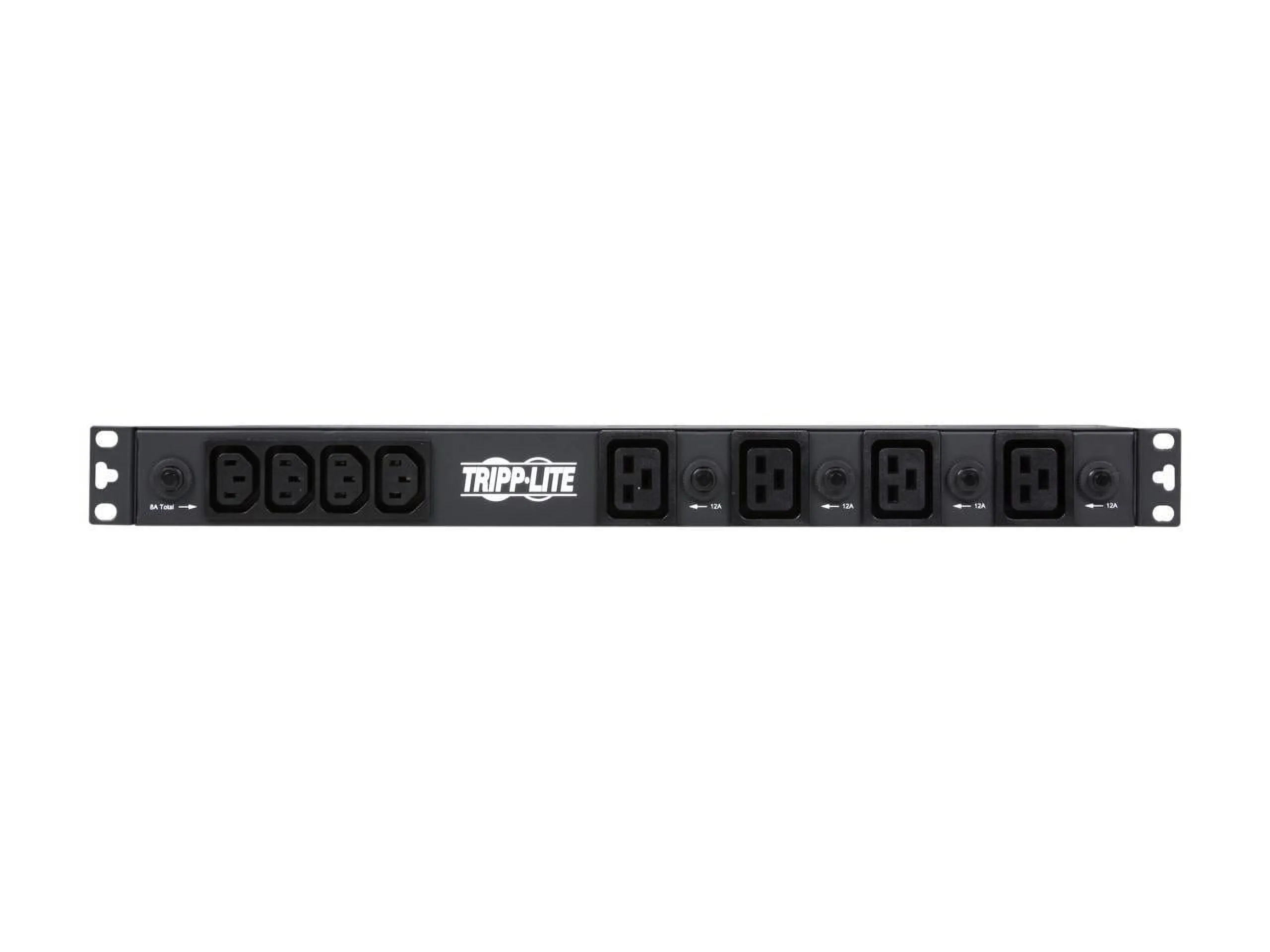

<p>Tripp Lite's PDU1230 offers 208/240V power distribution with L6-30P input plug, 15-foot cord and 20 total output receptacles. Features 4 front-panel C19 outlets, each protected by separate 15A circuit breakers, 4 front-panel C13 outlets and 12 rear-panel C13 outlets protected in banks of 4 by 4 separate 10A circuit breakers. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19-inch rack, with the potential for 0U vertical mounting in the cable area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 8 front-facing and 12 rear-facing outlets measures only 5.2 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDU1230 ideal for distributing alternate waveform UPS or generator power in rack enclosures.</p><br><ul><li>Power Rating: 4.99 kVA</li><li>Input Receptacles: NEMA L6-30P</li><li>Output Receptacles: 20</li><li>Input Voltage: 208 V AC</li><li>Input Voltage: 240 V AC</li><li>Output Voltage: 208 V AC</li><li>Output Voltage: 240 V AC</li><li>Current: 30 A Input Current</li><li>Form Factor: 1U Rack-mountable</li><li>Form Factor: Zero U Vertical Rackmount</li><li>Power Cord/Cable: 15 ft</li><li>Height: 1.8&quot;</li><li>Width: 17.5&quot;</li><li>Depth: 5.2&quot;</li><li>Weight (Approximate): 7.50 lb</li></ul><div style='padding-top:1em'><small>Product may differ from image shown</small></div>
