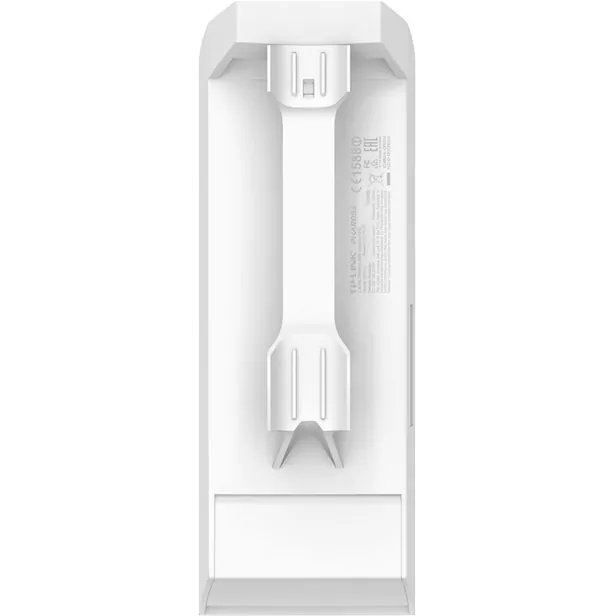

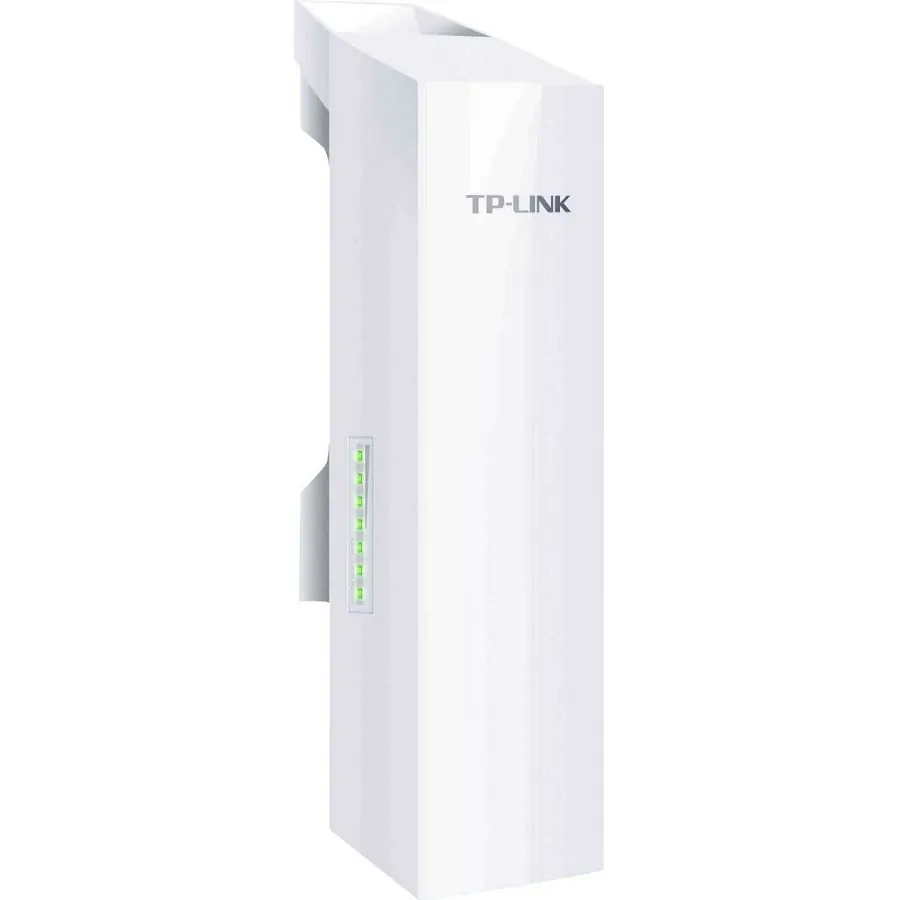

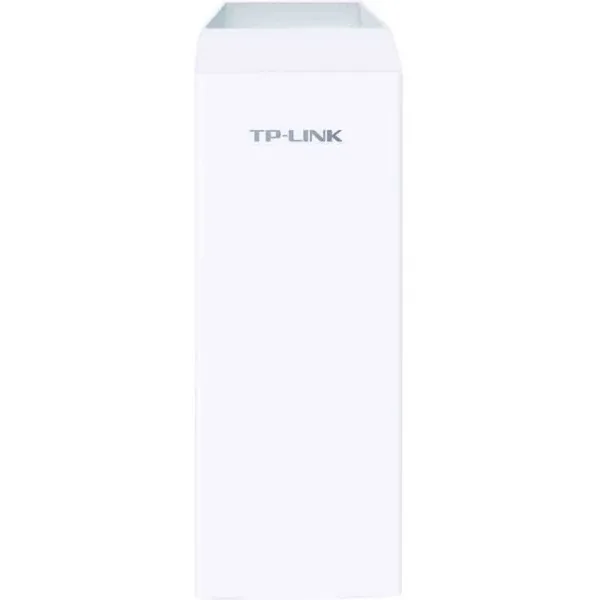

CPE210
TPLINK
CPE210 IS DEDICATED TO COST EFFECTIVE SOLUTIONS FOR OUTDOOR WIRELESS NETWORKING
- Built-in 9dBi 2x2 dual-polarized directional MIMO antenna<br/>- Adjustable transmission power from 0 to 27dBm/500mw<br/>- System-level optimizations for more than 5km long range wireless transmission<br/>- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications<br/>- Centralized Management System - Pharos Control<br/>- AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes<br/>- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
Specifications
| details | HARDWARE FEATURES Processor:Qualcomm Atheros 560MHz CPU, MIPS 74KcMemory:64MB DDR2 RAM, 8MB FlashInterface: 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough) 1 Grounding Terminal1 Reset Button Dimensions (W X D X H):224 x 79 x 60 mmAntenna Type:Built-in 9dBi 2x2 Dual-polarized Directional AntennaBeam Width: 65 (H-Plane) / 35 (E-Plane) Note: For more details, please refer to datasheetProtection:15KV ESD Protection6000V Lightning Protection Power Consumption: 10.5 Watts MaxNote: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. Power Supply: Passive Power over Ethernet via LAN0 (+4,5pins -7,8pins) Voltage range: 16-27VDCEnclosure: Outdoor ASA stabilized plastic materialIPX5 waterproof Certification WIRELESS FEATURES Wireless Standards:IEEE 802.11b/g/n (with Pharos MAXtream disabled) Proprietary Protocol:TDMA Mode (with Pharos MAXtream enabled) Wireless Speeds: Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) Frequency: 2.4-2.483GHzNote: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. Reception Sensitivity: 802.11b: 11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm 802.11g: 54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm 802.11n: MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm, MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm, MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm, MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm, MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm Transmission Power: 27dBm/500mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. SOFTWARE FEATURES Wireless Configurations: Pharos MAXtream TDMA Technology802.11b/g/n ModesSelectable Channel Width: 5/10/20/40MHzAutomatic Channel SelectionTransmission Power ControlDynamic Frequency Selection (DFS) WDS Enable/DisableSecurity: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP EncryptionSSID Broadcast Enable/DisableMulti-SSID with VLAN Tagging (AP mode only) Distance/ACK Timeout SettingWireless MAC Address FilterWireless Advanced: > Beacon Interval/RTS Threshold/Fragmentation>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia Management: Discovery and Remote Management via Pharos Control applicationHTTP/HTTPS Web-based managementSystem LogSNMP Agent(v2c) Ping Watch DogDynamic DDNSSSH Server System Tools: Wireless Signal Quality Indicators: Signal Strength/Noise/Transmit CCQ/CPU/MemoryMonitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCPSpectrum AnalyzerSpeed TestPingTracerouteSystem-level Optimizations: Optimized IGMP Snooping/Proxy for multicast applicationsHardware watch dog OTHERS Certification:CE, FCC, RoHS, IPX5Package Contents: Outdoor Wireless CPE24V 1A Passive PoE AdapterPole Mounting StrapsAC Power CordInstallation Guide System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. POE ADAPTER FEATURES Button:Remote Reset ButtonCertifications:CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-markDimensions(W x D x H):1105733.5mmEfficiency:>80%Input:100-240VAC, 50/60HzInput Current:0.8A Max at 100VACInput Voltage:100VA-240VAC at 50Hz-60Hz Interfaces: 1 AC Jack with Earth Ground1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data) Output:24VDC, 1.0A Max+4, 5pins -7, 8pins. (Support up to 60m Power over Ethernet) Output Voltage:24VDC(+4,5pins -7,8pins) Power Status LEDs: 0-0.8A: Green0.8A-1.0A: Red Item Dimension (L"xW"xH"): 10.63 x 5.20 x 4.17Weight:1.85 lbWarranty Information: 2 years |
Available From 1 Seller
| Seller | Condition | Qty | Price | Location | Updated | Action | |
|---|---|---|---|---|---|---|---|
|
Aztek Computers
VAR |
Refurbished | 76 | $57.13 | Frisco, TX | Mar 18 |
