9202W

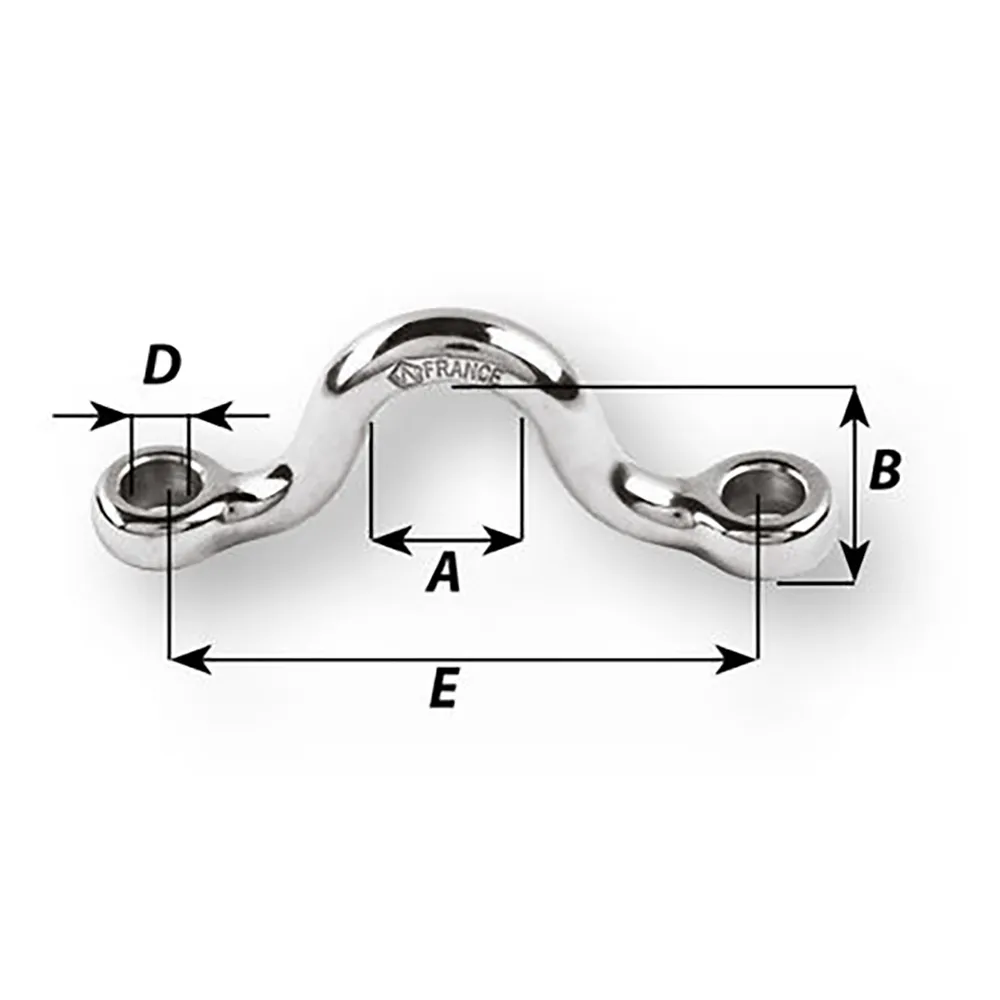

<p><strong>Eye Strap - 5mm Diameter - 13/64" - 37.5mm Spacing - 1-15/32"</strong></p><p><strong>Features:</strong></p><ul><li>Complete range of drop-forged saddles with high-quality stainless steel (316L)</li><li>Outstanding strength</li><li>The round shape reduces the wear of the components connected to them (straps, ropes...)</li></ul><p><strong>Applications:</strong></p><ul><li>Fastening applications&nbsp;</li><li>Attachment of straps &amp; cordage</li></ul><p><strong>Specifications:</strong></p><ul><li>Materials: 316L stainless steel grade</li><li>Breaking load: (lb) 3960 / (kg) 1800&nbsp;</li><li>Weight: (lb) 0.02 / (g) 9&nbsp;</li></ul><p><strong>Dimensions:</strong></p><ul><li>A: (inch) 25/64" / (mm) 10&nbsp;</li><li>B: (inch) 35/64" / (mm) 14&nbsp;</li><li>D diameter: (inch) 13/64" / (mm) 5&nbsp;</li><li>E: (inch) 1 15/32" / (mm) 37.5&nbsp;</li></ul><p><strong>Caption:</strong></p><ul><li>Working Load (WL): For nautical applications</li><li>Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5</li></ul><p>*Sold as an Individual</p> <!--- cis2:m2hqmpZo --->
