6656W

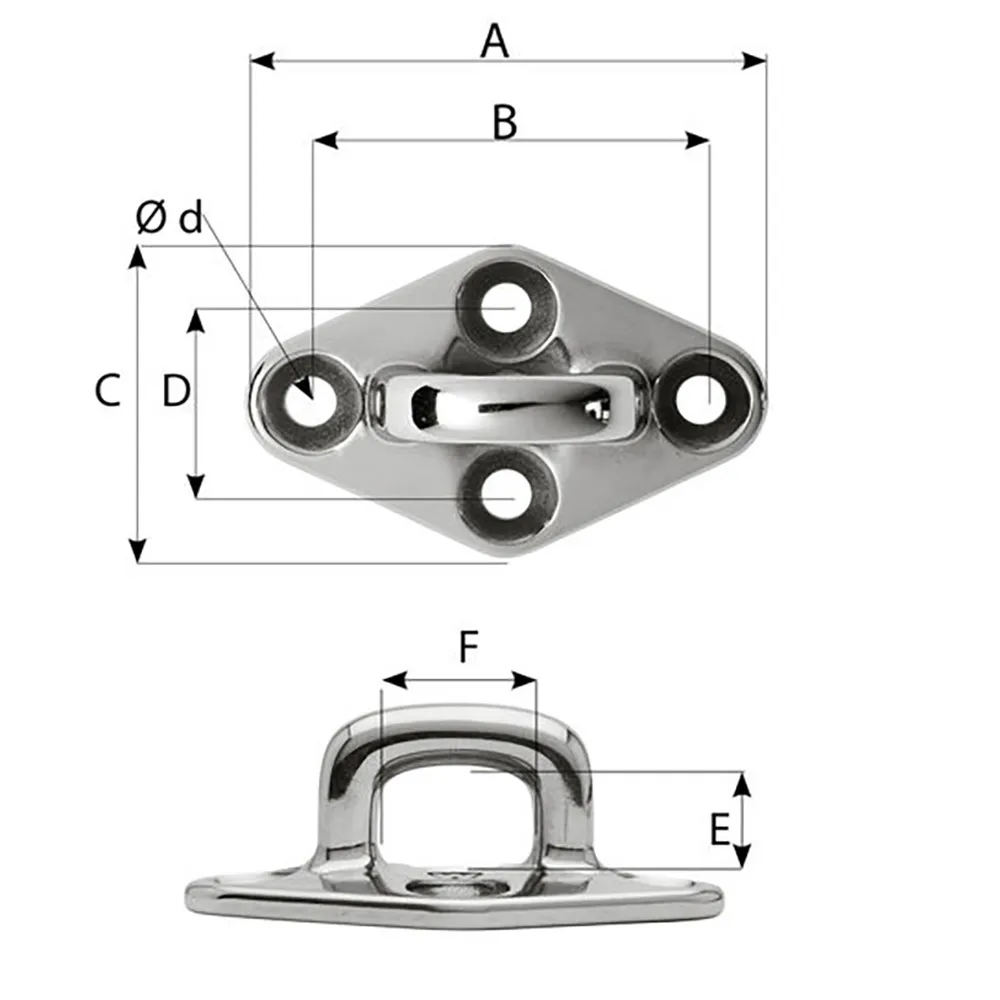

<p><strong>Diamond Pad Eye - Square - 98mm Length (3-55/64") - M8 Screw</strong></p><p><strong>Features:</strong></p><ul><li>Mechanical resistance versus corrosion resistance ratio</li><li>Optimized dimensions</li><li>For M8 screw</li></ul><p><strong>Applications:</strong></p><ul><li>Mast foot blocks&nbsp;</li><li>Reefing blocks</li><li>Various fastenings</li></ul><p><strong>Specifications:</strong></p><ul><li>Materials: Duplex stainless steel grade</li><li>Working Load: (lb) 9479.8 / (kg) 4300</li><li>Breaking Load: (lb) 25573.6 / (kg) 11600</li><li>Weight: (lb) 0.562 / (g) 255</li><li>W.L 1 (90 degrees): (lb) 9479.8 / (kg) 4300&nbsp;</li><li>W.L 2 (45 degrees): (lb) 9479.8 / (kg) 4300&nbsp;</li><li>W.L 3 (0 degrees): (lb) 9038.9 / (kg) 4100&nbsp;</li><li>B.L 1 (90 degrees): (lb) 25573.6 / (kg) 11600&nbsp;</li><li>B.L 2 (45 degrees): (lb) 25573.6 / (kg) 11600&nbsp;</li><li>B.L 3 (0 degrees): (lb) 24250.8 / (kg) 11000&nbsp;</li></ul><p><strong>Dimensions:</strong></p><ul><li>A: (inch) 3 55/64" / (mm) 98</li><li>B: (inch) 2 7/8" / (mm) 73</li><li>C: (inch) 2 21/64" / (mm) 59</li><li>D: (inch) 1 3/8" / (mm) 35</li><li>E: (inch) 49/64" / (mm) 19.5</li><li>F: (inch) 1 1/16" / (mm) 27</li></ul><p><strong>Caption:</strong></p><ul><li>Working Load (WL): For nautical applications</li><li>Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5</li></ul><p>*Sold as an Individual</p> <!--- cis2:m2hqmpZo --->
