65341W

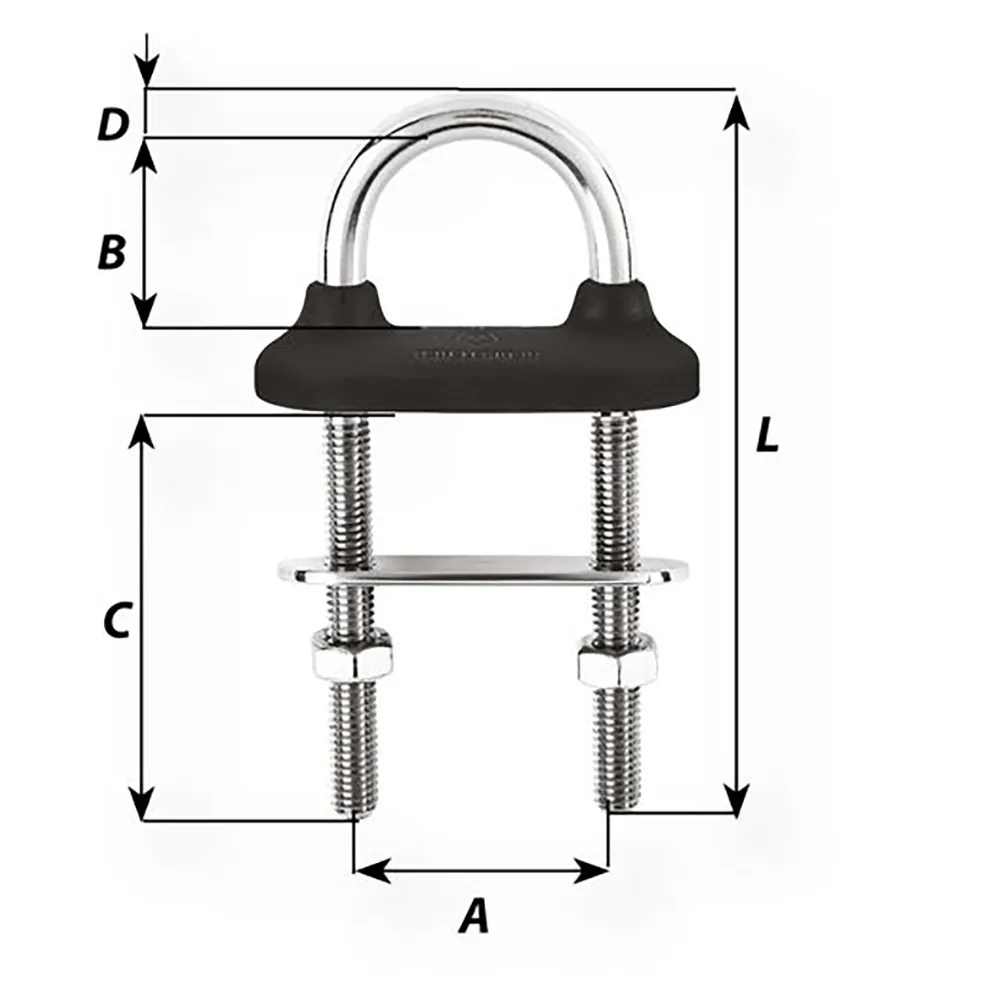

<p><strong>Black Watertight U-Bolt - 8mm Diameter - 5/16" - 80mm Length - 3-5/32"</strong></p><p><strong>Features:&nbsp;</strong></p><ul><li>Fully drop-forged product with high-quality stainless steel</li><li>Outstanding working and breaking loads</li><li>Complete water-tightness thanks to the resistant rubber collar (black color)</li><li>Easy installation (no need to use a waterproof sealant)</li><li>Delivered with bolts and counter-plate</li><li>Max tightening torque: 18 nm</li></ul><p><strong>Applications:</strong></p><ul><li>Various fastening applications: shrouds, lifelines, blocks&hellip;</li></ul><p><strong>Specifications:&nbsp;</strong></p><ul><li>Materials: 316L stainless steel grade</li><li>Color: Black</li><li>Working load: (lb) 5290 / (kg) 2400&nbsp;</li><li>Breaking load: (lb) 10580 / (kg) 4800&nbsp;</li><li>Weight: (lb) 0.271 / (g) 123&nbsp;</li></ul><p><strong>Dimensions:</strong></p><ul><li>Length: (inch) 3 5/32" / (mm) 80&nbsp;</li><li>A: (inch) 1 27/64" / (mm) 36&nbsp;</li><li>B: (inch) 63/64" / (mm) 25&nbsp;</li><li>C: (inch) 1 37/64" / (mm) 40&nbsp;</li><li>D diameter: (inch) 5/16" / (mm) 8&nbsp;</li></ul><p><strong>Caption:</strong></p><ul><li>Working Load (WL): For nautical applications</li><li>Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5</li></ul><p>*Sold as an Individual</p> <!--- cis2:m2hqmpZo --->
