6526W
Image 1 Image 2

6526W

Wichard Marine

Wichard U-Bolt Pad Eye - 12mm Diameter - 15/32 - 130mm Length - 5-1/8

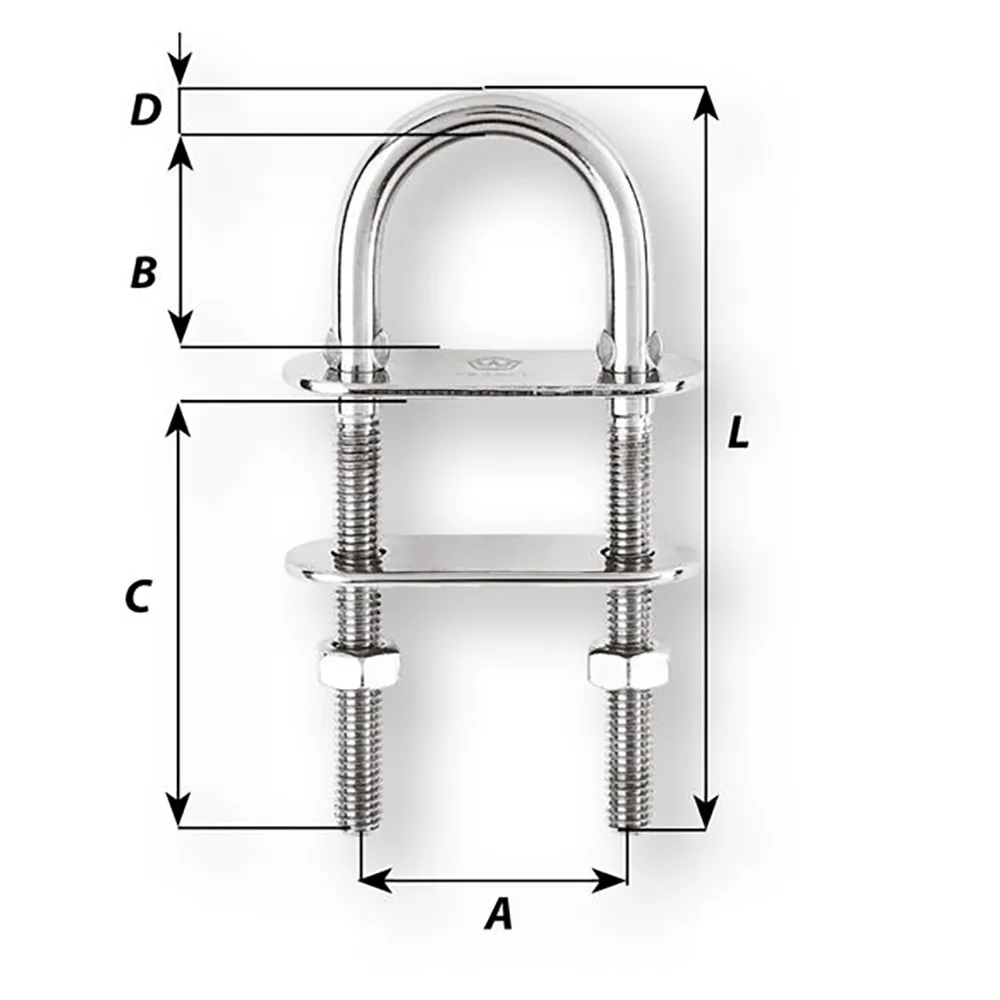

<p><strong>U-Bolt Pad Eye - 12mm Diameter - 15/32" - 130mm Length - 5-1/8"</strong></p><p><strong>Features:</strong></p><ul><li>Entirely drop forged product with high-quality stainless steel</li><li>Outstanding working and breaking loads</li><li>For any fastening applications (shrouds, lifelines, blocks...)</li><li>Delivered with bolts and counter-plate</li><li>Max tightening torque: 60 Nm</li></ul><p><strong>Applications:</strong></p><ul><li>Various fastening applications: shrouds, lifelines, blocks&hellip;</li></ul><p><strong>Specifications:</strong></p><ul><li>Materials: 316L stainless steel grade</li><li>Working load: (lb) 14100 / (kg) 6400 &nbsp;</li><li>Breaking load: (lb) 22040 / (kg) 10000&nbsp;</li><li>Weight: (lb) 0.769 / (g) 349&nbsp;</li></ul><p><strong>Dimensions:</strong></p><ul><li>A: (inch) 1 47/64" / (mm) 44&nbsp;</li><li>B: (inch) 1 11/32" / (mm) 34&nbsp;</li><li>C: (inch) 2 3/4" / (mm) 70&nbsp;</li><li>D diameter: (inch) 15/32" / (mm) 12&nbsp;</li><li>Length: (inch) 5 1/8" / (mm) 130&nbsp;</li></ul><p><strong>Caption:</strong></p><ul><li>Working Load (WL): For nautical applications</li><li>Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5</li></ul><p>*Sold as an Individual</p> <!--- cis2:m2hqmpZo --->
1
Seller
2
In Stock
$102.79
From

Watch This Product
Available From 1 Seller
Seller Condition Qty Price Location Updated Action
Aztek Computers
VAR
Refurbished 2 $102.79 Frisco, TX Mar 18
