01213

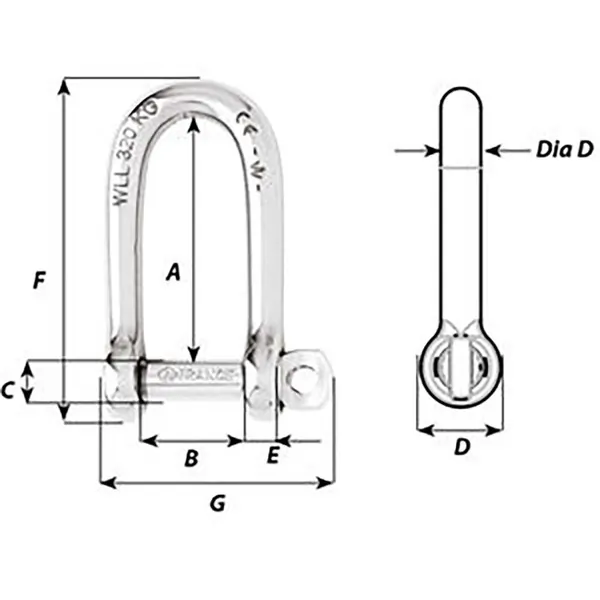

<p><strong>Self-Locking Long D Shackle - Diameter 6mm - 1/4"</strong></p><p><strong>Features:</strong></p><ul><li>Self-locking long shackle forged in grade 316L stainless steel</li><li>The pin is locked into one of the indentations</li><li>No risks of loosening due to vibrations</li><li>Outstanding working and breaking loads</li><li>WLL: only for industrial applications</li><li>CE Marking and batch number</li></ul><p><strong>Applications:</strong></p><ul><li>Standard applications of shackle requiring more length</li><li>Attachment applications: blocks, head...</li></ul><p><strong>Specifications:</strong></p><ul><li>Materials 316 stainless steel grade</li><li>Working load (lb) 1320</li><li>WLL (lb) 700</li><li>Breaking load (lb) 3520</li><li>Weight (lb) 0.06</li></ul><p><strong>Dimensions (see 2nd image):</strong></p><ul><li>A (inch) 1-19/64"</li><li>B (inch) 15/32"</li><li>C (inch) 15/64"</li><li>D (inch) 15/32"</li><li>D diameter (inch) 15/64"</li><li>E (inch) 13/64"</li><li>F (inch) 1-27/32"</li><li>G (inch) 1-7/32"</li></ul> <!--- cis2:m2hqmpZo --->
