SUPER7

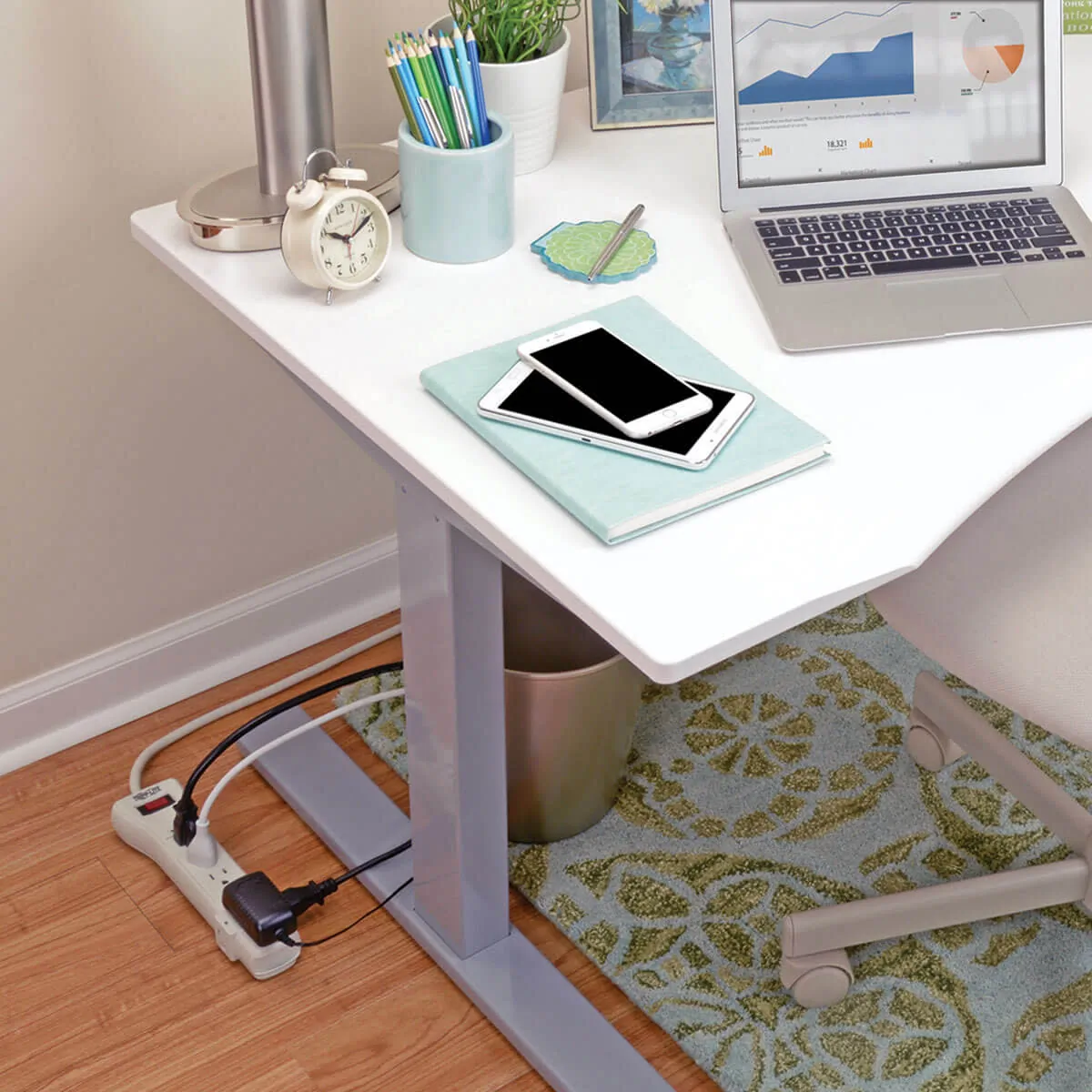

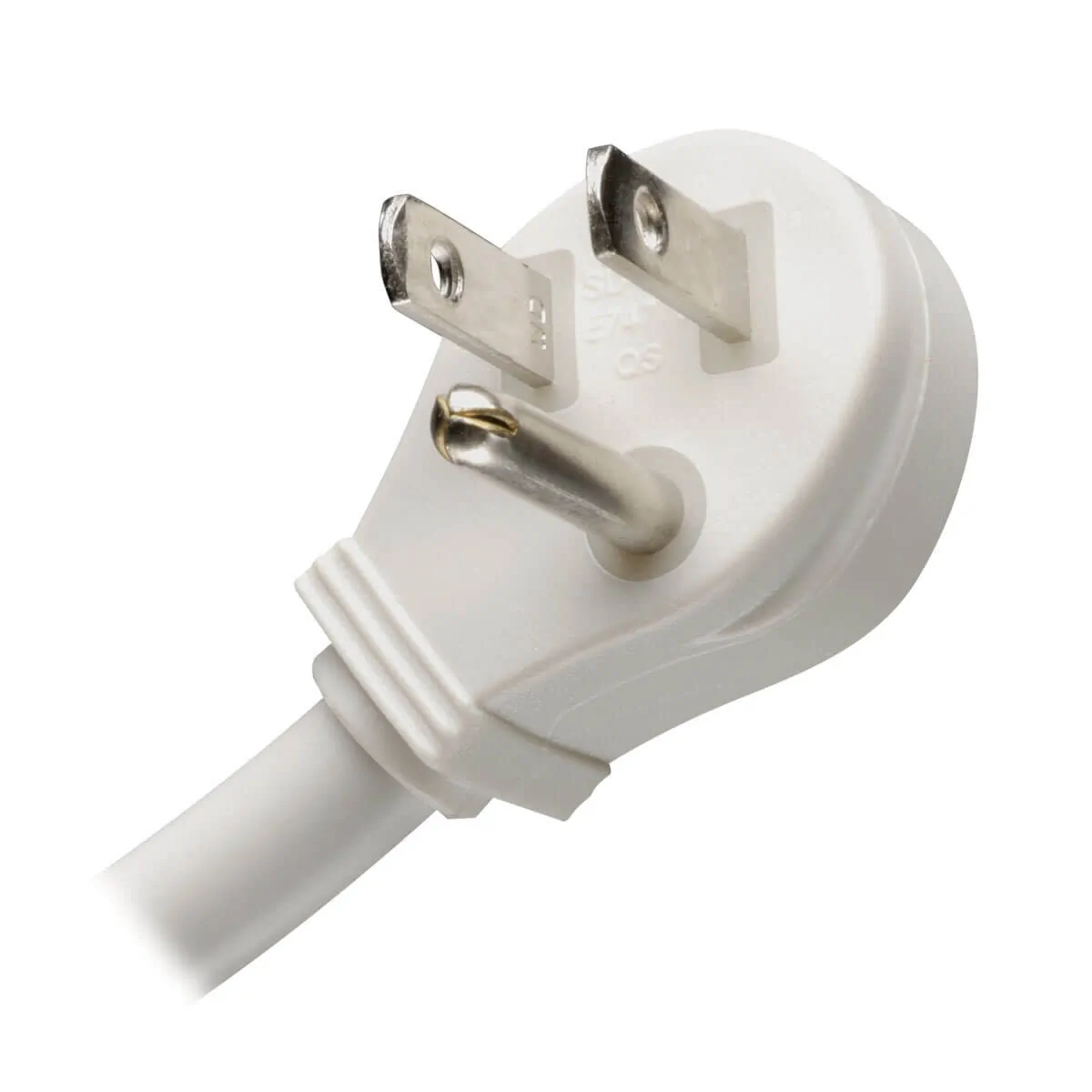

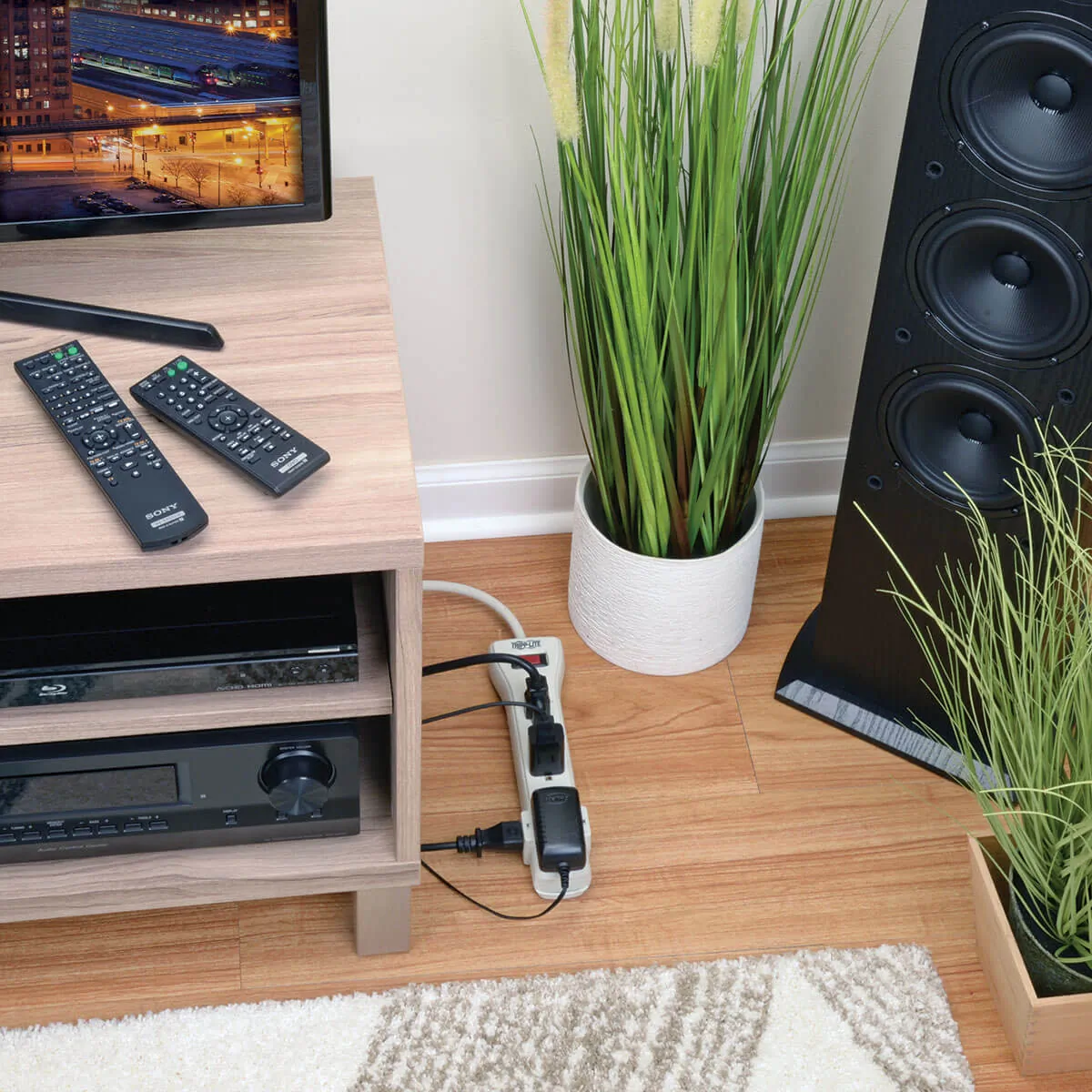

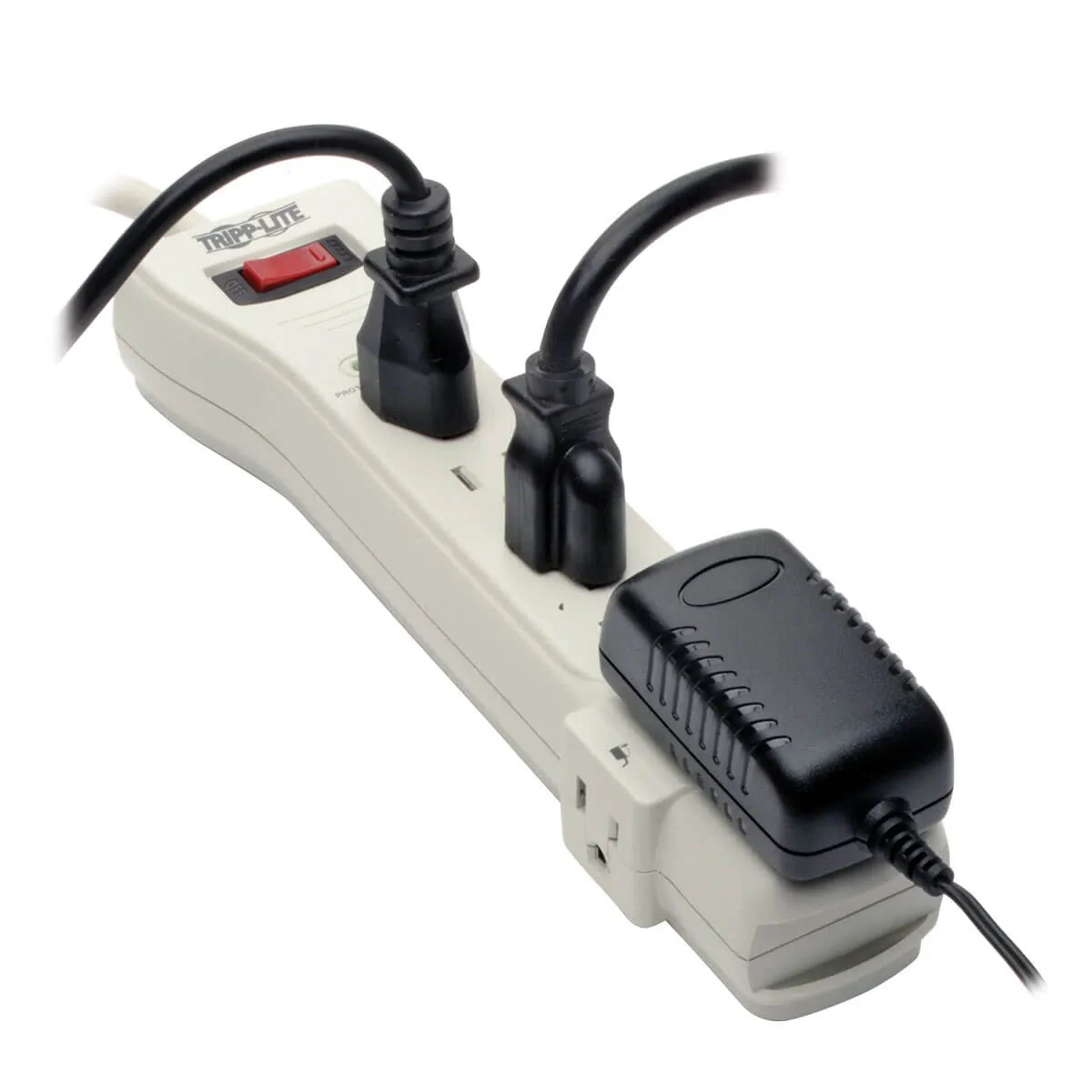

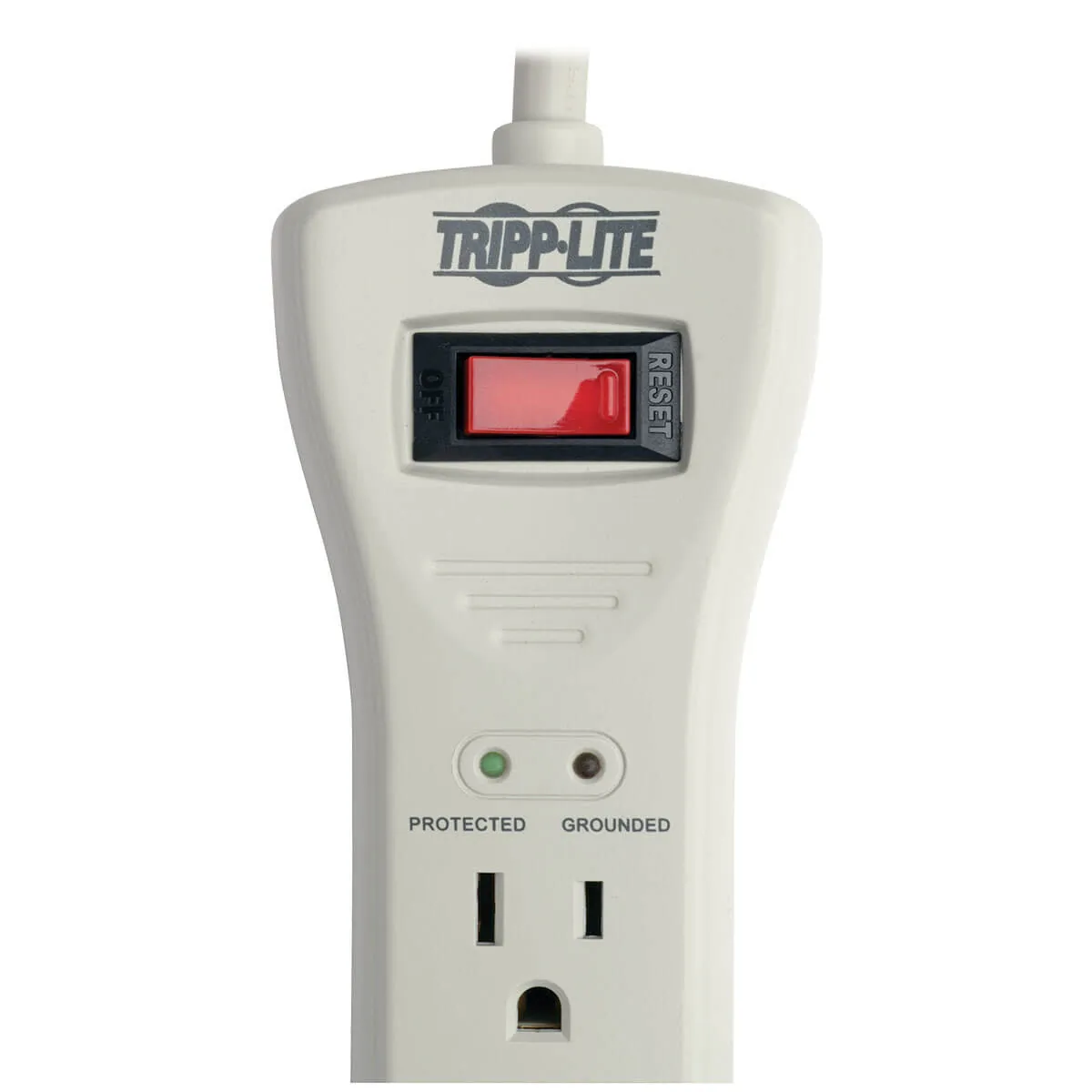

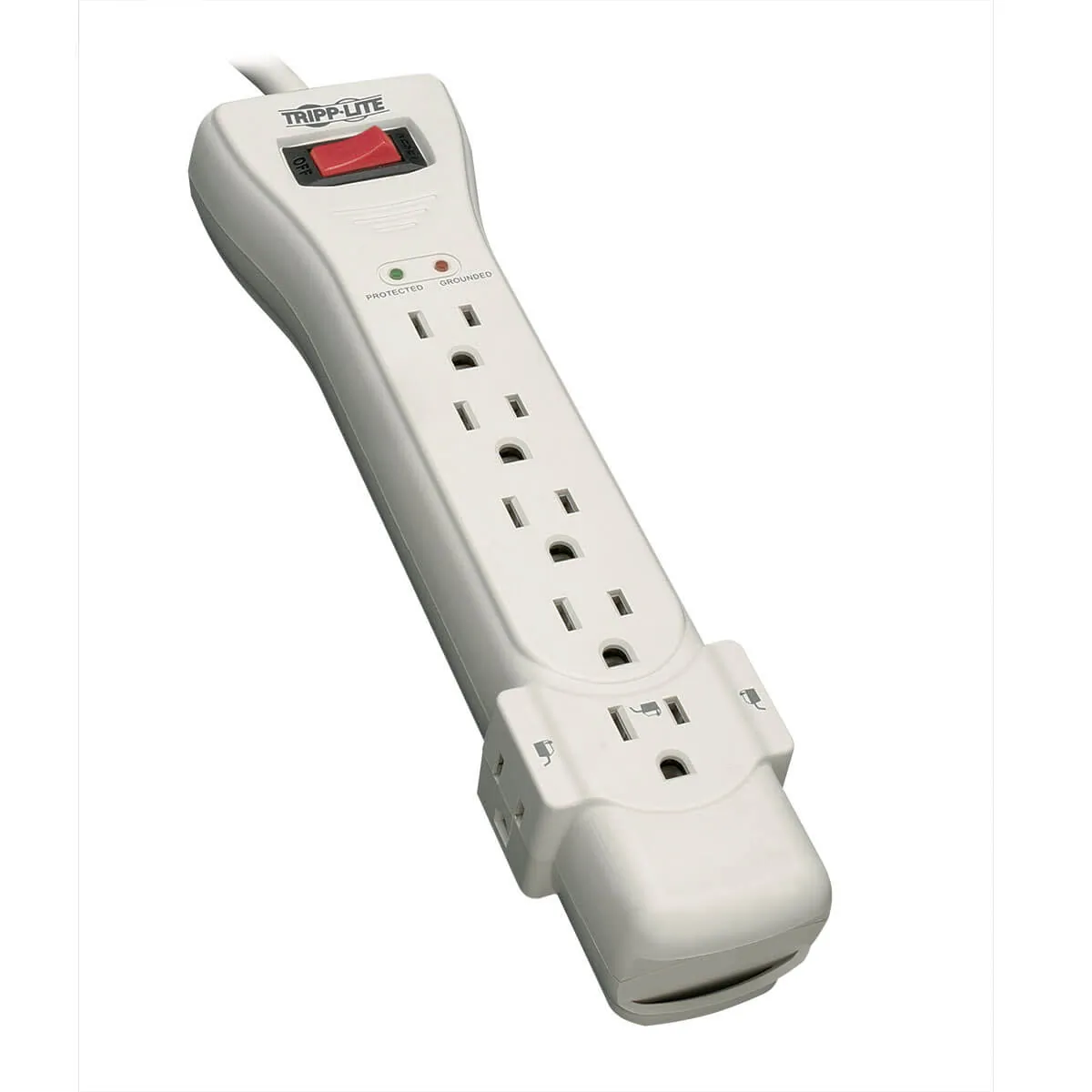

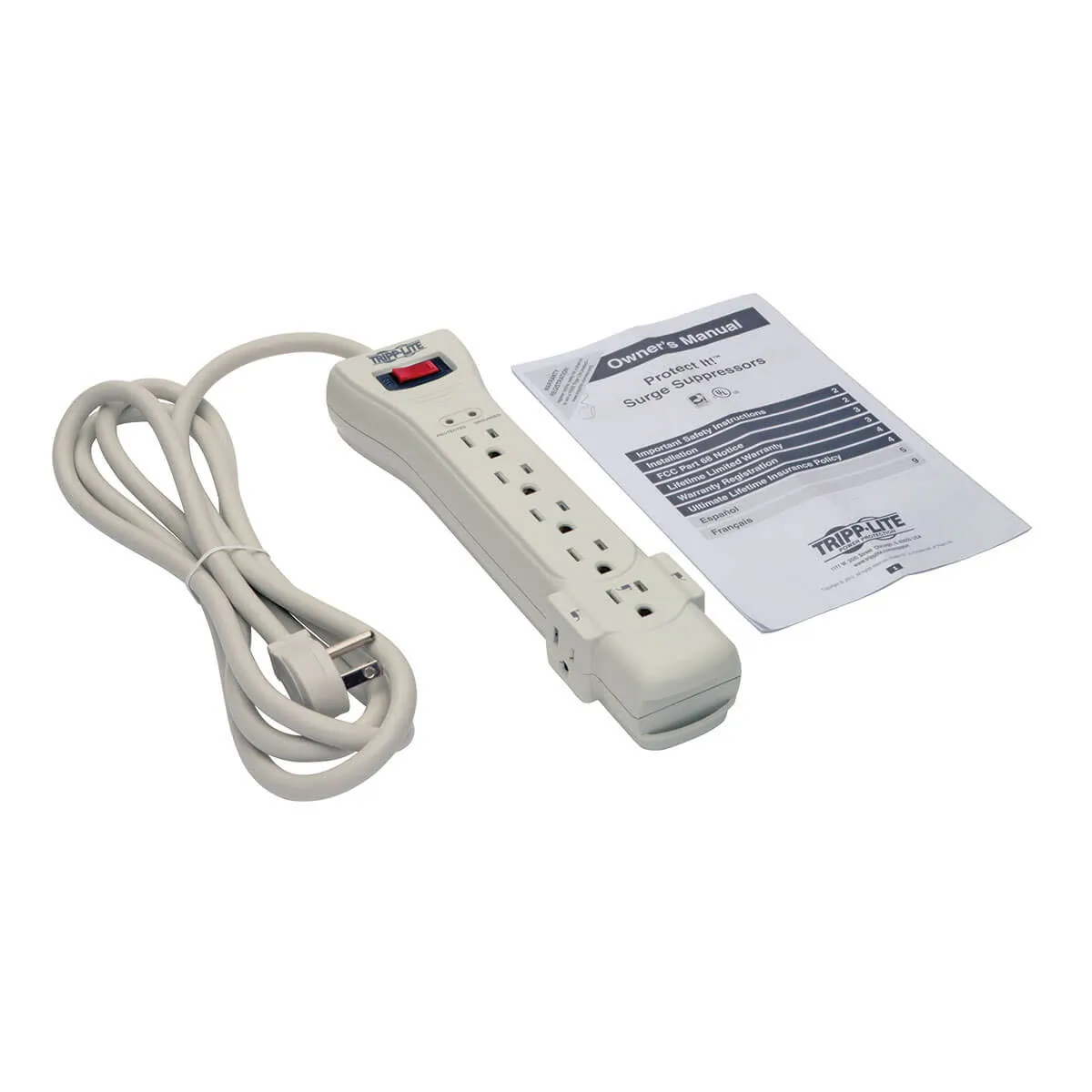

<p>Perfect for your home or office workstation, the SUPER7 Protect It!r 7-Outlet Surge Protector features a surge suppression rating of 2160 joules to defend your sensitive electronic components against even the strongest surges and spikes.Because residential power outlets have three wiresrhot line (H), neutral (N) and ground (G)rthe SUPER7 protects all three, covering the two protection modes: full normal mode (H-N) and common mode (N-G/H-G). It also filters out electromagnetic interference (EMI) and radio frequency interference (RFI) that can disrupt your electronics and inflict hardware damage or data loss.Your devices plug into seven NEMA 5-15R outlets. Two outlets are mounted on the side to allow connection of three bulky transformers without blocking adjacent outlets. An integrated 15A circuit breaker protects all outlets and shuts down connected equipment in case of overload. The on/off switch provides one-touch control over connected equipment. Diagnostic LEDs confirm grounding and protection status.The seven-foot (2.1-meter) AC power cord allows the SUPER7 to reach nearby outlets, while its right-angle NEMA 5-15P plug allows furniture and equipment to be placed flush against the wall to save space in your workstation. Keyhole slots incorporated into the bottom panel provide convenient wall or desk mounting options for the light gray plastic housing.</p><br /><br /><ul><li>UPC Code: 037332095282</li><li>Nominal Input Voltage(s) Supported: 120V AC</li><li>Recommended Electrical ServiceL: 120V (110-125V)</li><li>Input Plug Features: Right Angle (36D)</li><li>Input Cord Gauge Type: 14 gauge; SJT</li><li>Input Cord Gauge (AWG): 14</li><li>Voltage Compatibility (VAC): 120</li><li>Maximum Surge Amps: 144000</li><li>Input Plug Type: NEMA 5-15P</li><li>Input Cord Details: SJT</li><li>Input Cord Length (ft.): 7</li><li>Right-Angle Plug: Yes</li><li>Frequency Compatibility: 50 / 60 Hz</li><li>Output Receptacles: (7) 5-15R</li><li>Circuit Breaker (amps): 15</li><li>Transformer Accommodation: (4) Yes</li><li>Outlet Orientation: Single row of 5, plus 2 side mounted outlets</li><li>Diagnostic LED(s): Yes</li><li>Switches: Two position on/off power switch</li><li>Diagnostic LED Details: Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status</li><li>AC Suppression Joule Rating: 2160</li><li>AC Suppression Response Time: < 1 ns</li><li>Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression</li><li>UL1449 Let Through Rating: 330 L-G, 400 L-N, 400 N-G</li><li>EMI / RFI Filtering: Up to 20 dB</li><li>Automatic Shut-Off: Yes</li><li>Network (Ethernet) Protection: No</li><li>Material of Construction: Plastic</li><li>Power Cord Color: Light Gray</li><li>Housing Color: Light Gray</li><li>Mounting Holes or Slots: Yes</li><li>Slot or Hole Mount Measurement (Center to Center): Distance between slots = 70 mm; Distance between slot height = 24 mm</li><li>Outlets Measurement (Center to Center); Between Standard Outlets = 29mm; Between Transformer Outlets = 48mm</li><li>Receptacle Color: Light gray</li><li>Shipping Dimensions (hwd / in.): 12.60 x 1.90 x 5.90</li><li>Shipping Weight (lbs.): 1.55</li><li>Unit Dimensions (hwd / in.): 1.540 x 2.720 x 10.300</li><li>Unit Weight (lbs.): 1.39</li><li>Input Cord Color: Gray</li><li>Product Certifications: CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; NOM (Mexico); UL 1449; UL 1363; UL Listed</li><li>Product Compliance: RoHS</li><li>Product Warranty Period (Worldwide): Lifetime limited warranty</li><li>Connected Equipment Insurance (U.S., Canada &amp; Puerto Rico): $75,000 Ultimate Lifetime Insurance</li></ul>
