SU1000RTXLCD2U
Image 1 Image 2 Image 3 Image 4 Image 5 Image 6

SU1000RTXLCD2U

Tripp Lite

Tripp Lite, UPS, SmartOnline 1000VA, 2U, 100/110/120/127V, 900W, 6 x 5-15R, USB, DB9, EPO

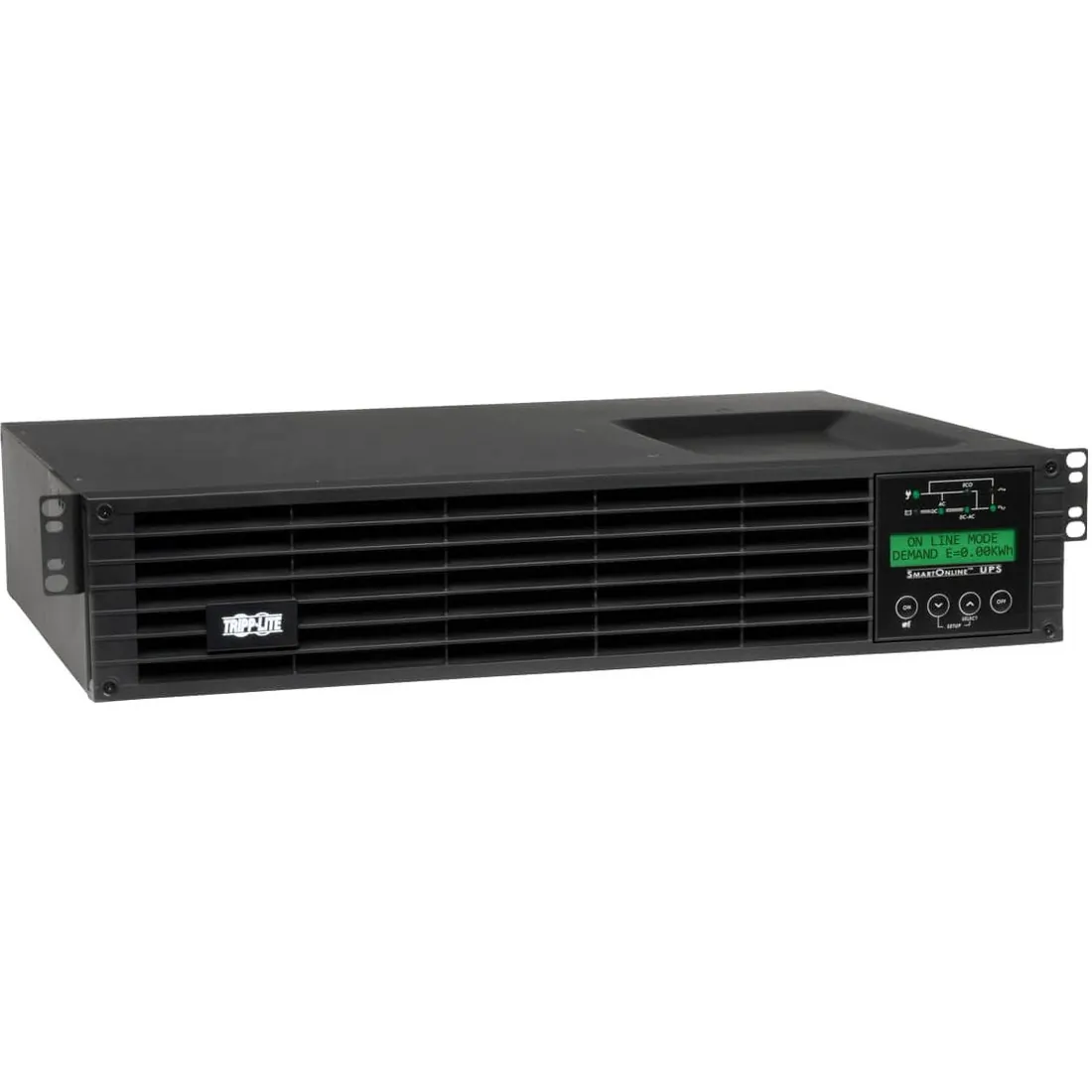

Get reliable protection with the Tripp Lite Tower/Rack Mountable UPS. It's suitable for servers and network equipment. The Tripp Lite rack mountable UPS allows your business to operate during blackouts and surges without the need for transfer time. It also reduces the risk of data loss in the event of a spontaneous power outage, allowing you ample amount of time to save any file that you may be working on. It has an interactive LCD interface that reports the current UPS operating mode, detailed UPS and site-power data. It also supports a variety of UPS setup and configuration options. This unit maintains regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC.
Specifications
detailsOUTPUTOutput Volt Amp Capacity (VA):1000Output kVA capacity (kVA):1Output Watt Capacity (watts):900Output power factor:0.9Output Capacity Details:ON LINE MODE: Maximum output capacity ratings are reduced for some nominal voltage settings (127/120/115/110V 900 watts, 100V 810 watts). FREQUENCY REGULATION / CONVERSION MODE: Maximum output ratings are reduced in frequency regulation / conversion mode (127/120/115/110V 630 watts / 100V 567 watts). Crest Factor:3:1Nominal Output Voltage(s) Supported:100V 110V 115V 120V 127VNominal Voltage details:120V factory-default nominal voltageFrequency compatibility:50/60 Hz (auto-selectable) Supports 50 to 60 Hz and 60 to 50 Hz conversionOutput voltage regulation (line mode):+/- 2%Output voltage regulation (Economy line mode):+/- 10%Output voltage regulation (Battery mode):+/- 3%Built-in UPS output receptacles:6 5-15R outlet(s) Built-in controllable switched load banks:Two switchable single-outlet 5-15R load banksOutput AC waveform (AC mode):Pure Sine waveOutput AC waveform (battery mode):Pure Sine wave INPUTRated input current (at maximum load):8.6ANominal Input Voltage(s) Supported:100V AC 110V AC 115V AC 120V AC 127V ACNominal input voltage description:120V factory defaultUPS input connection type:5-15PInput circuit breaker:15AUPS Input cord length (ft.):10UPS Input cord length (m):3Recommended Electrical Service:15A 120V BATTERYFull load runtime (minutes):4.8 min. (900w) Half load runtime (minutes):14 min. (450w) Expandable battery runtime:Extended runtime supported via optional external battery packsExternal battery pack compatibility:BP24V15RT2U (limit 1) BP24V28-2U (limit 1) BP24V70-3U (multi-pack compatible) Expandable runtime description:Some external battery configurations require the use of Tripp Lites External Battery Configuration Software, see manual for detailsDC system voltage (VDC):24Battery recharge rate (included batteries):Less than 3 hours recharge to 90%Replacement battery cartridge (internal UPS battery replacement):RBC24V-LCDBattery Access:Front panel battery accessBattery replacement description:Hot-swappable, user replaceable batteries VOLTAGE REGULATIONVoltage regulation description:Online, double-conversion power conditioning maintains 2% output voltage regulation during brownouts and overvoltagesOvervoltage correction:Corrects overvoltages to 150V (0-100% load) Undervoltage correction:Corrects undervoltages to 100V at full load (90V at 100V nominal) Severe undervoltage correction:Corrects brownouts to 70V (70% load) 55V (33% load) LEDS ALARMS and SWITCHESLED Indicators:7 front panel LEDs indicate line power availability, AC to DC conversion, battery mode operation, inverter mode, eco mode operation, bypass mode operation and AC output statusFront panel LCD display:Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional optionsAlarms:Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditionsAlarm cancel operation:Power-fail alarm can be temporarily silenced using alarm-cancel switch silent mode alarm configuration option availableSwitches:2 switches control off/on power status and alarm-cancel operation 2 additional scroll-down and scroll-up / select options enable LCD status viewing and configuration options SURGE / NOISE SUPPRESSIONUPS AC suppression joule rating:570UPS AC suppression response time:InstantaneousUPS Dataline suppression:1 line TEL/DSL (1 in / 1 out) 10/100Base T EthernetEMI / RFI AC noise suppression:Yes COMMUNICATIONSCommunications interface:USB (HID enabled) DB9 Serial Contact closure EPO (emergency power off) Slot for SNMP/Web interfaceNetwork monitoring port description:Supports detailed monitoring of UPS and site power conditions DB9 port supports RS232 and contact closure communicationsPowerAlert software:IncludedCommunications cable:USB and DB9 cabling includedWatchDog compatibility:Supports Watchdog application, OS and hard-reboot restart options for remote applications LINE / BATTERY TRANSFERTransfer time:Zero (0 milliseconds) in double-conversion mode 4 milliseconds economy modeLow voltage transfer to battery power (setpoint):100V at full load (90V full load at 100V nominal setting) 70V at 70% load 55V at 33% loadHigh voltage transfer to battery power (setpoint):150CERTIFICATIONSUPS Certifications:Tested to UL1778 (USA) Tested to CSA (Canada) Meets FCC Part 15 Category B (EMI) ROHS (Restriction of Hazardous Substances) Item Dimension (L"xW"xH"):24 x 20 x 9.5Weight:41.5 lb Warranty Information: 2 Years
1
Seller
2
In Stock
$895.80
From
Watch This Product
Available From 1 Seller
Seller Condition Qty Price Location Updated Action
Aztek Computers
VAR 		Refurbished 2 $895.80 Frisco, TX Mar 18
