PDUMH30ATNET
Tripp Lite

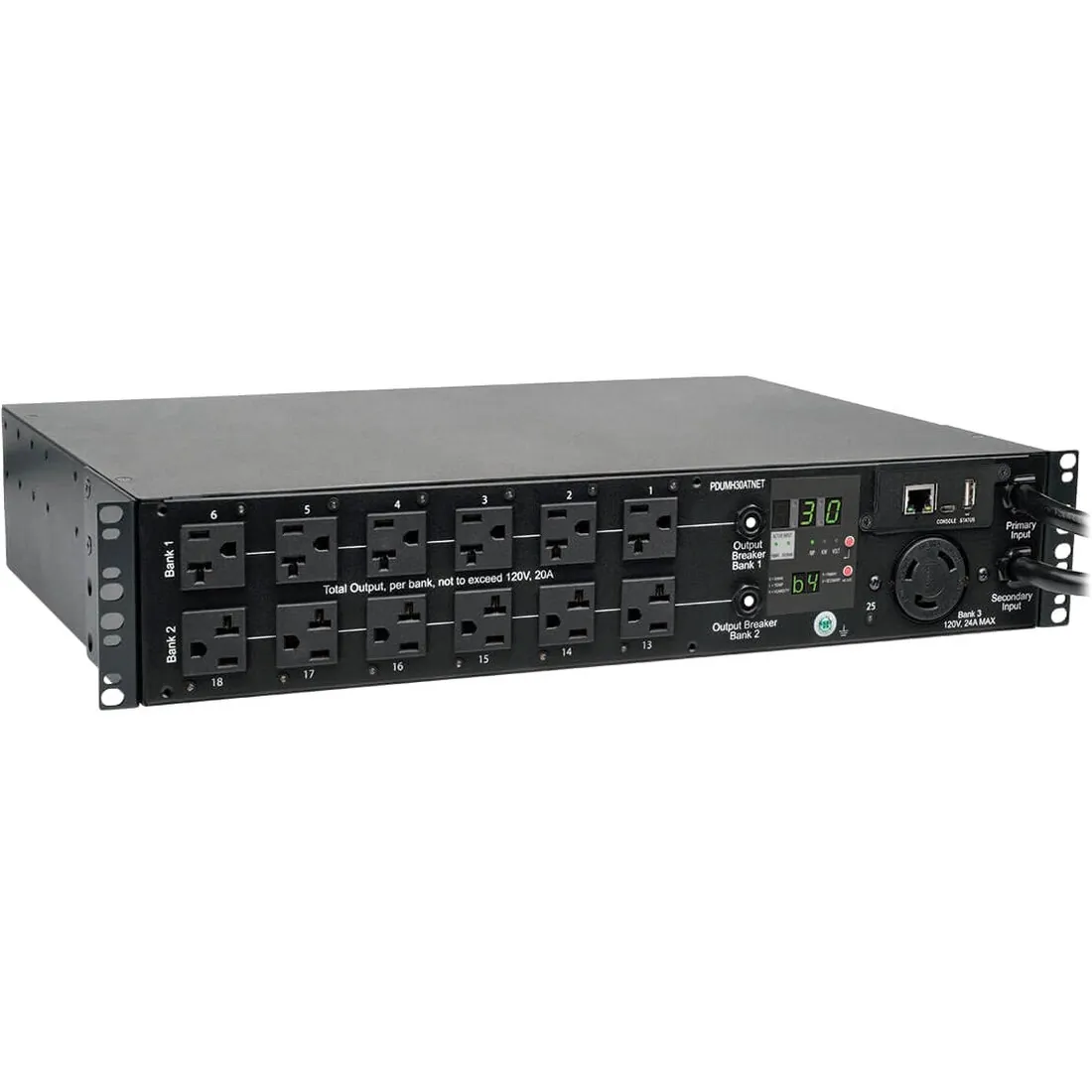

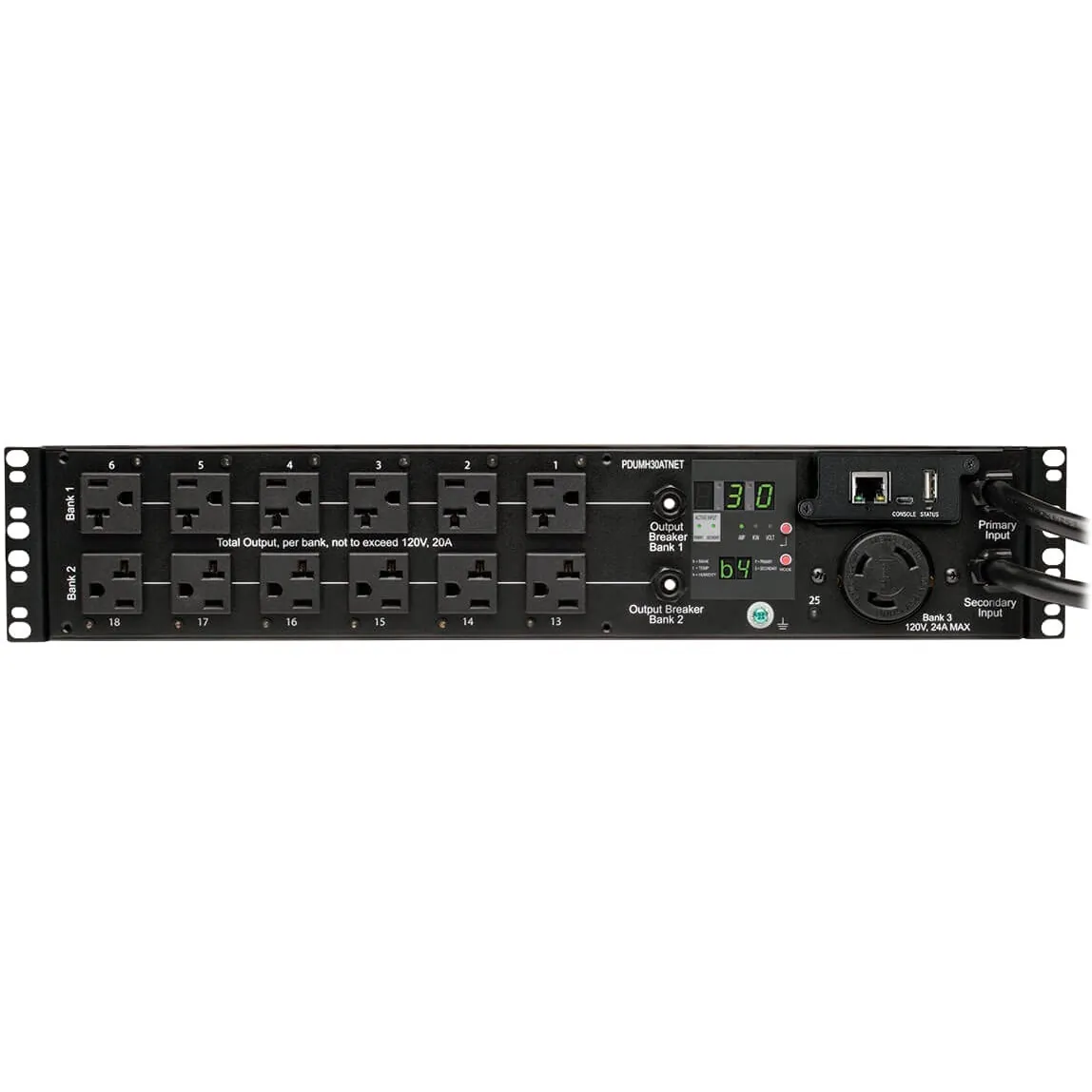

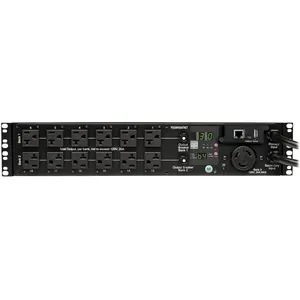

Tripp Lite, PDU, Single Phase Auto Transfer Switch Switched, 2.9kW, 30A, 120V, 2U, 24 5-15/20R
This Tripp Lite Switched PDUMH30ATNET includes separate L5-30P primary and secondary input cords and 25 switched output receptacles. It offers 30A 120V multi-outlet power distribution with dual input connections. The Tripp Lite PDU features a built-in network interface that enables remote SNMP/Web monitoring and control.
Specifications
| details | Model Type Switched ATS/Auto Transfer Switches PDU Type Auto-Transfer Switch Switched OUTPUT Frequency compatibility:60 Hz Output nominal voltage:120V Outlet quantity / type:24 5-15/20R (switched), 1 L5-30R (switched) INPUT PDU Input Voltage:100 120 127 Maximum Input Amps (A) :30 Input connection type:Two labelled L5-30P inputs support Primary and Secondary input connections PDU Plug Type:NEMA L5-30P Phase:Single-Phase LEDS ALARMS and SWITCHES Switches:Switch near digital display enables monitoring output current for Bank 1, Bank 2, L5-30R outlet or all outputs combined Front panel LEDs:25 LEDs display power on - off status for each outlet, plus 2 LEDs for power status on Primary and Secondary input connection. PHYSICAL Material of construction:Steel Style:Rackmount Form factors supported:2U rackmount PDU Form Factor:Horizontal (1U, 2U, etc) COMMUNICATIONS SNMP compatibility:Yes, via pre-installled network interface. Provides remote monitoring, outlet control, and automatic power management configurations. SPECIAL FEATURES Appearance:Black 2U rackmount steel chassis CERTIFICATIONS Certifications:Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS Complaint Item Dimension (L"xW"xH"): 8 x 20.5 x 17 Weight:16.90 lb |
