PDU3MV6L2130

Tripp Lite

Tripp Lite, PDU, 3 Phase Metered, 8.6kW, 208/120V, 0URM, 36 C13, 6 C19, 6 5-15/20R, 6FT L21-20P

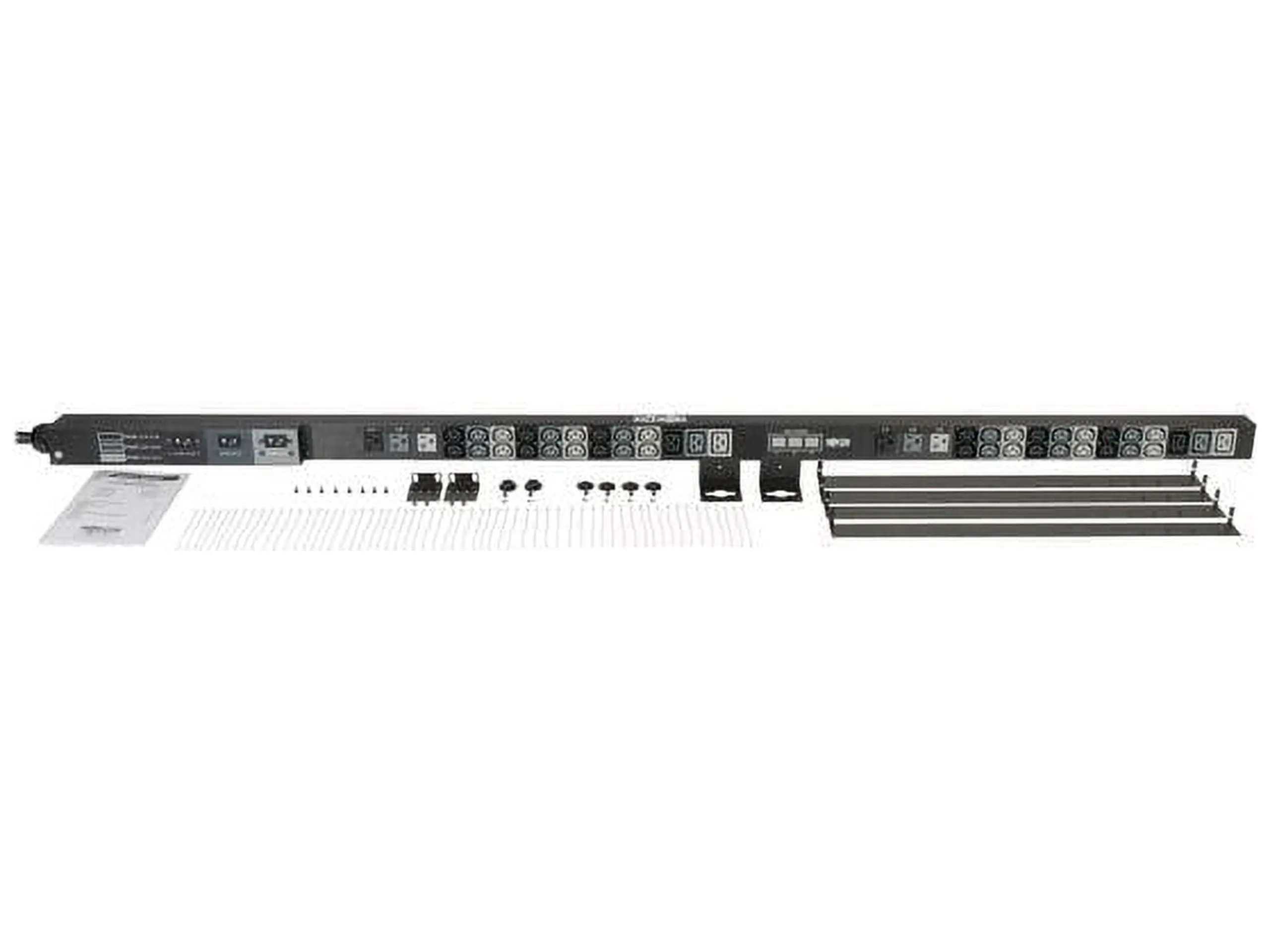

General InformationTripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.Technical InformationInput Receptacles: NEMA L21-30POutput Receptacles: 6 x NEMA 5-15/20ROutput Receptacles: 6 x IEC 60320 C19Output Receptacles: 36 x IEC 60320 C13Protection Type: Overload ProtectionPower DescriptionInput Voltage: 230 V ACOutput Voltage: 120 V ACOutput Voltage: 208 V ACPower Rating (Watt): 8600 WPhysical CharacteristicsMounting Orientation: VerticalPlacement: RackHeight: 70"Width: 2.7"Depth: 2.2"Weight (Approximate): 13.90 lbMiscellaneousPackage Contents: Metered PDU3MV6L2130 48-Outlets 8.6kW PDUCord Retention BracketsRack Mounting BracketsOwner's ManualEnvironmentally Friendly: YesEnvironmental Certification: RoHSWarrantyLimited Warranty: 2 Year
Specifications

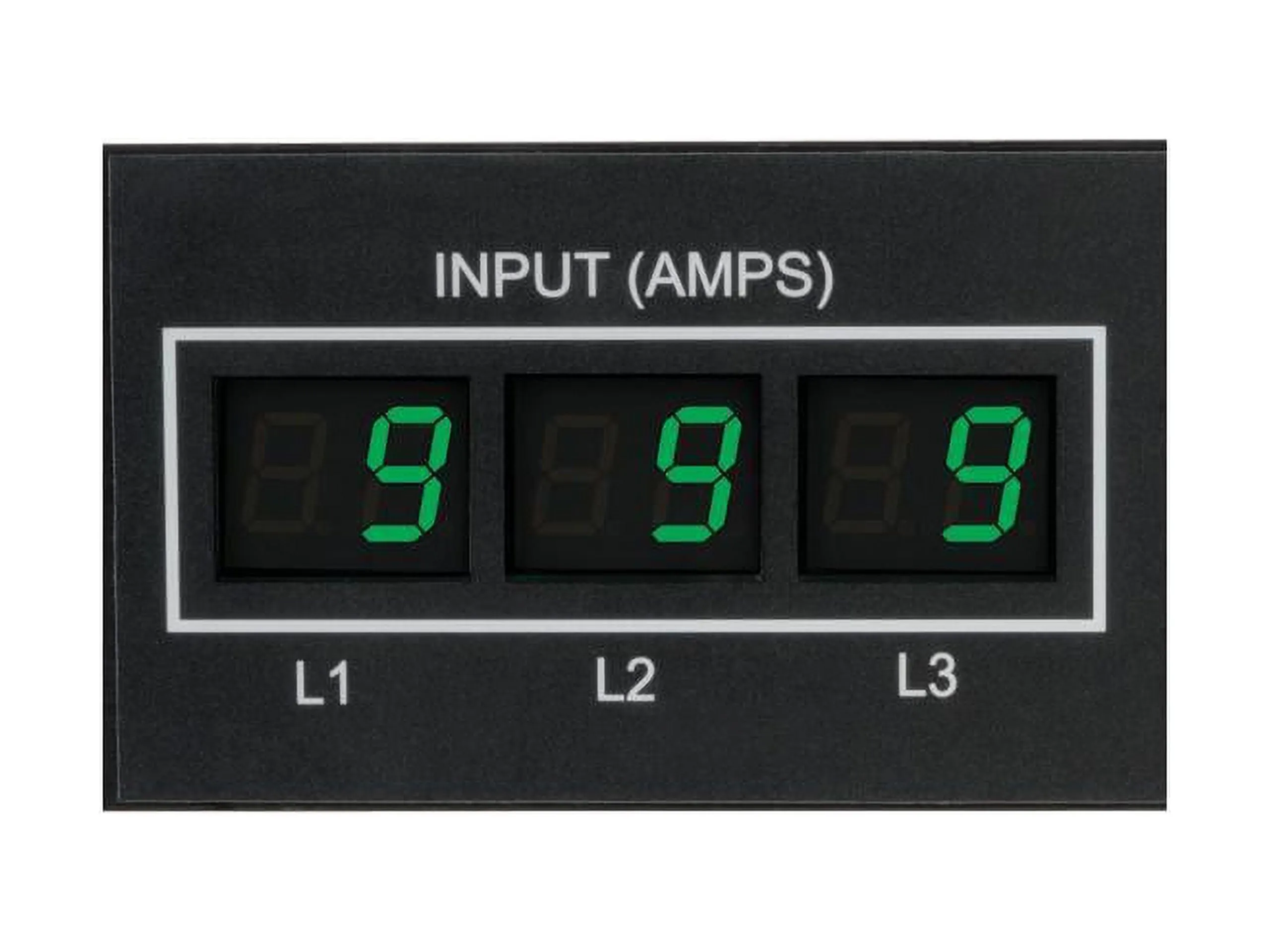

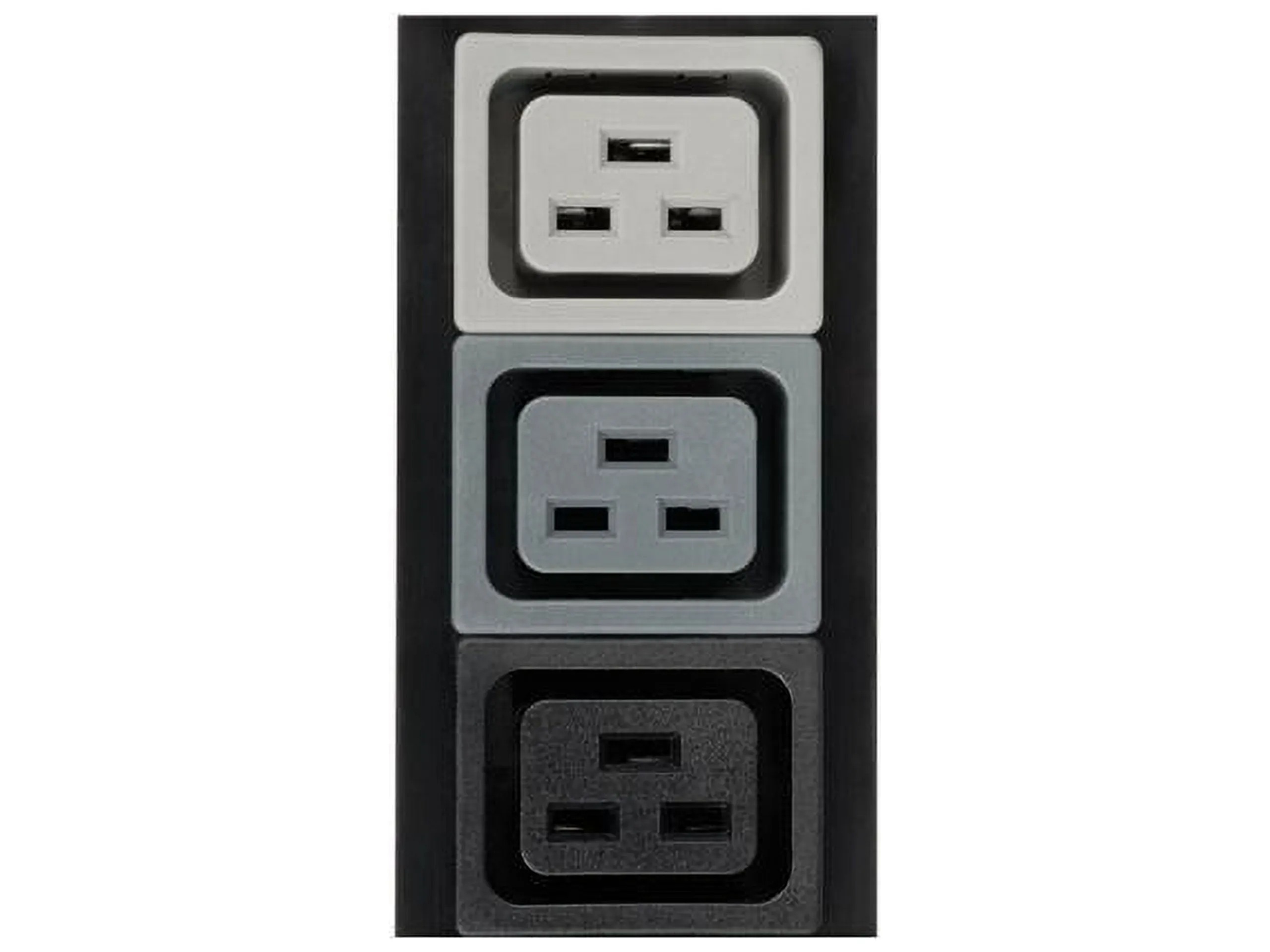

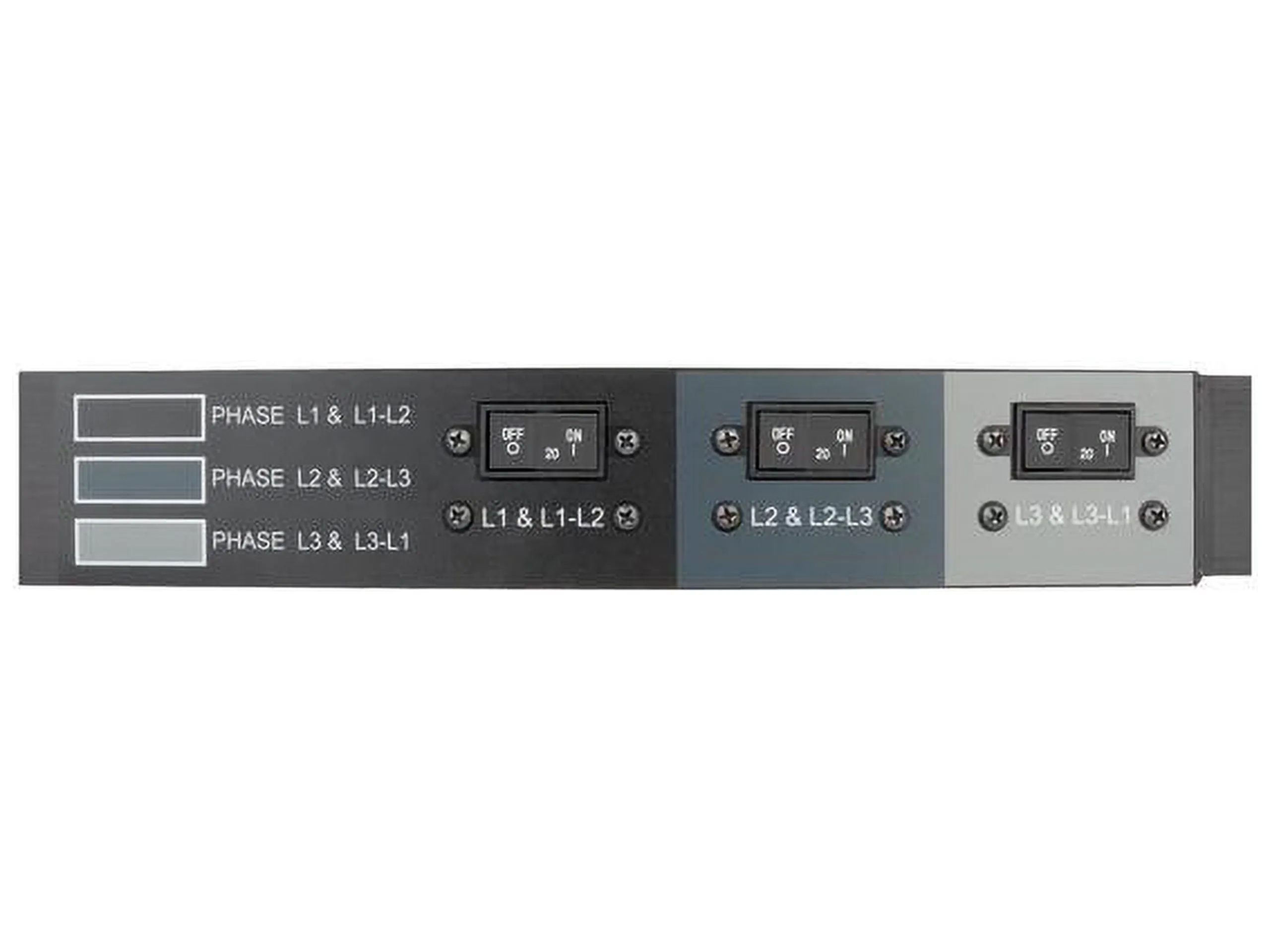

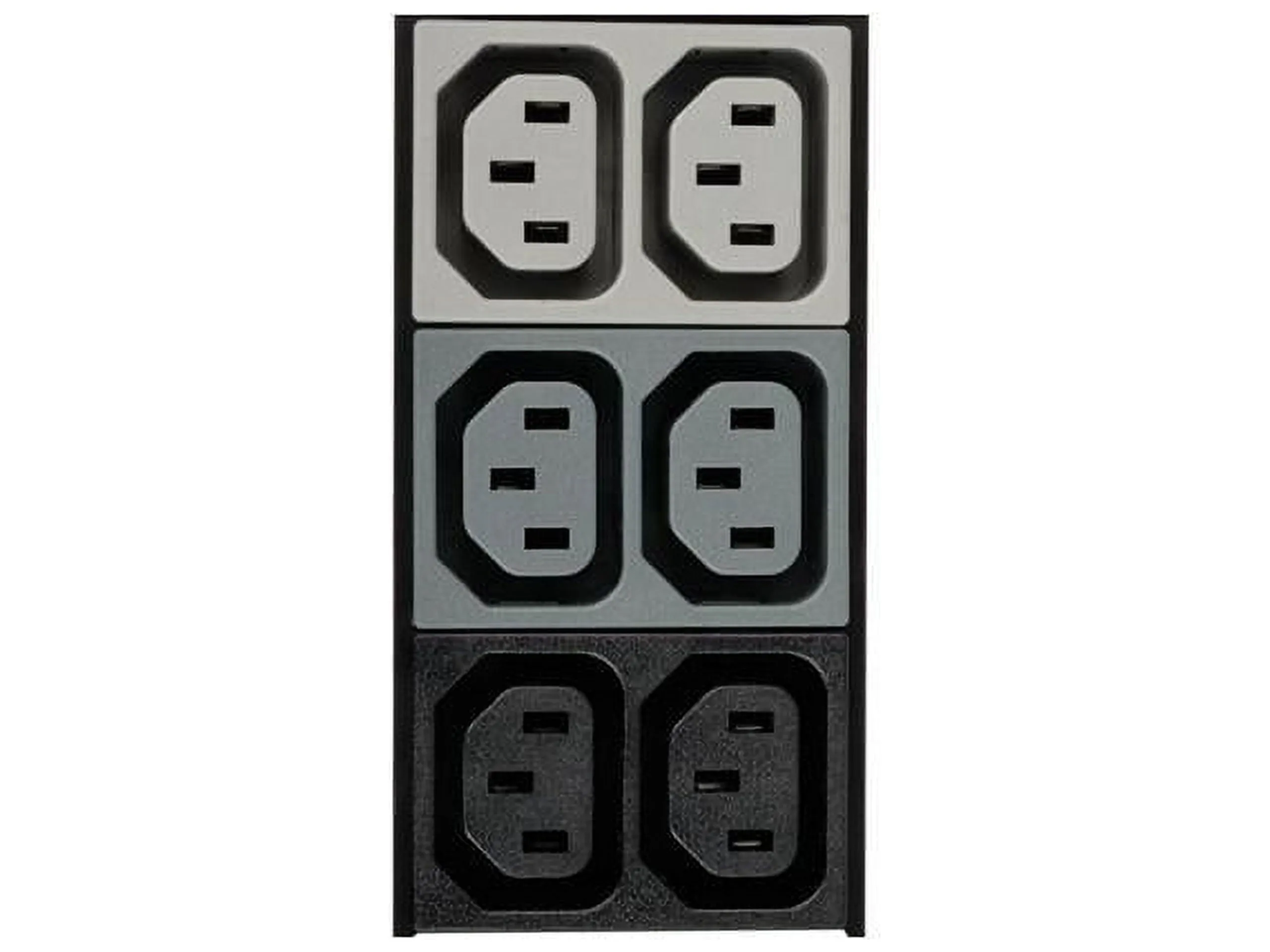

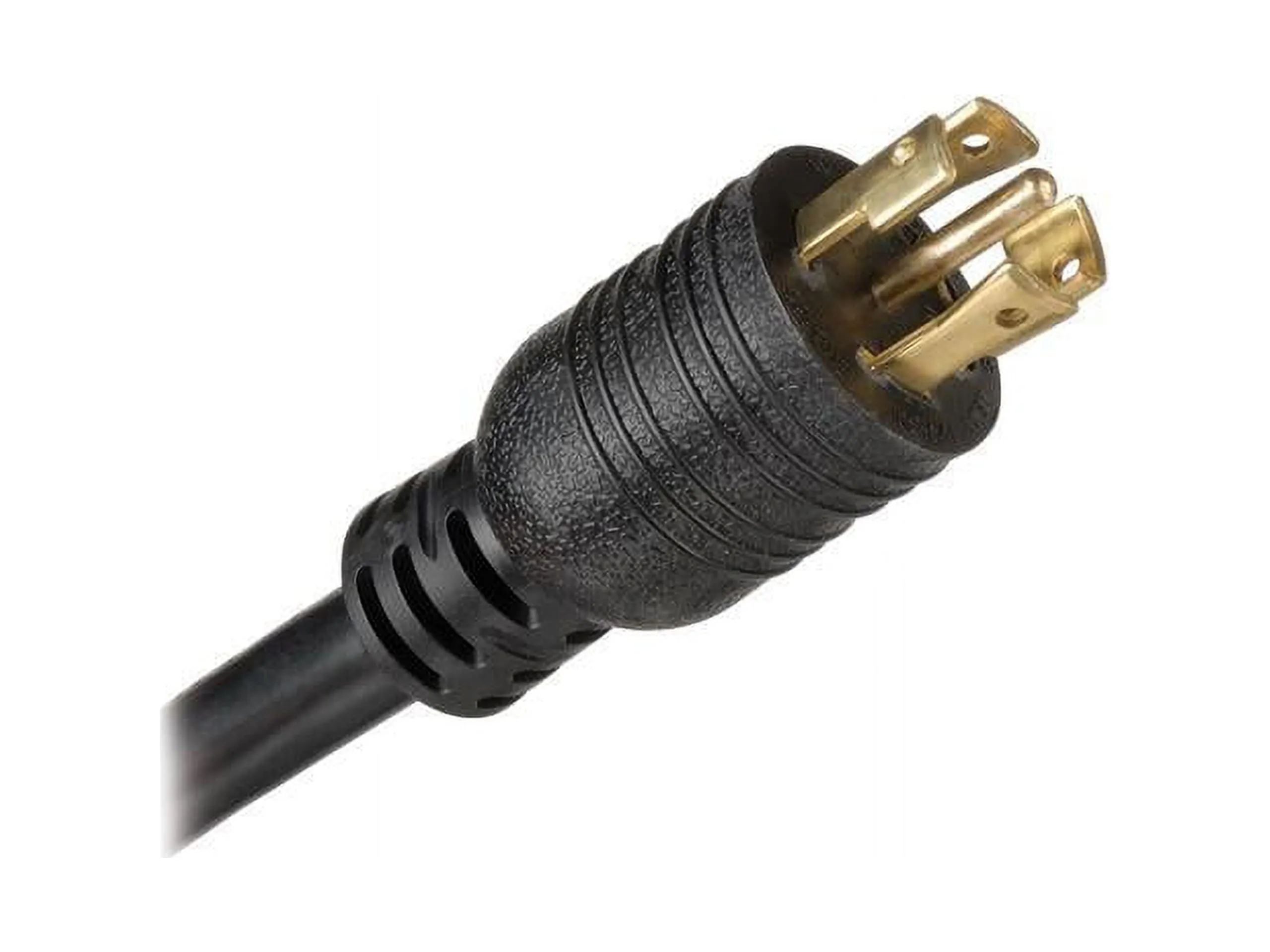

detailsOVERVIEW PDU Type Metered OUTPUT Output Capacity Details 8.6kW total capacity 13.8A (208V) / 16A (120V) max per output phase 12A max per C13 outlet 16A max per 5-20R outletFrequency Compatibility 60 HzOutput Receptacles (6) 5-15/20R (36) C13 (6) C19Output Nominal Voltage 208V: C13 and C19 outlets / 120V: NEMA 5-15/20R outletsOverload Protection 3 20A double-pole circuit breakers (1 per output phase) Outlet Type IEC-C13, IEC-C19, NEMA 5-15/20RIndividual Outlet Switching No INPUT PDU Input Voltage 208Maximum Input Amps 24PDU Plug Type NEMA L21-30PInput Cord Length (ft.) 6Input Cord Length (m) 1.83Input Phase 3-Phase USER INTERFACE, ALERTS CONTROLS Front Panel LCD Display Set of 3 digital current meters report input current in amps (L1, L2, L3) Reported Load Segments Supports monitoring of input current per phase (13.8A balanced max per L1, L2 and L3) Outlets are color-coded and labelled for phase and load bank identification Phase L1-L2 feeds black C13 C19 outlets Phase L2-L3 feeds dark-gray C13 C19 outlets Phase L3-L1 feeds light-gray C13 C19 outlets Phase L1-N feeds black 5-20R outlets Phase L2-N feeds dark-gray 5-20R outlets Phase L3-N feeds light-gray 5-20R outlets CERTIFICATIONS TAA Compliant Option TAA Compliant Version Available - Order Tripp Lite PDU3MV6L2130TAACertifications Tested to UL60950-1 (USA, Canada), NOM (Mexico), Class A (Emissions), ROHS Weight 14.50 Item Dimension 70 x 2.2 x 1.71 Warranty Information 2-years limited warranty
1
Seller
9
In Stock
$836.66
From
Watch This Product
Available From 1 Seller
Seller Condition Qty Price Location Updated Action
Aztek Computers
VAR 		Refurbished 9 $836.66 Frisco, TX Mar 18
